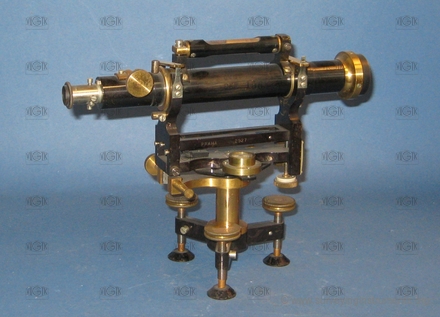

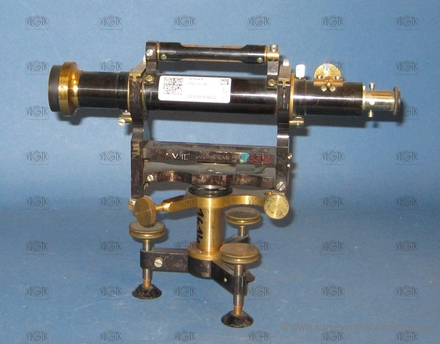

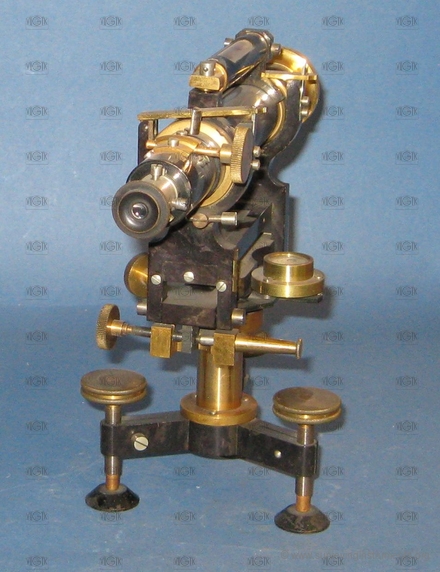

levelling instrument – J. & J. Frič
Description
The manufacturer's name on the device
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0349
Owner:
České vysoké učení technické v Praze - Stavební fakulta
Manufacturer:
J. & J. Frič
Made:
01.01.1910
Length:
268
mm
Width:
110
mm
Height:
190
mm
Weight:
1356
g
S/N:
2927
Technical parameters
cross hairs:
telescope type:
reversible
tripod connection:
tribrach
type of clamp:
clamp on the axis
compensator:
no
elevation screw:
yes
view in the telescope:
inverted
variable telescope length:
yes
telescope length with retracted eyepiece:
245
mm
telescope length with extended eyepiece:
268
mm
telescope diameter:
28
mm
minimum telescope focusing distance:
1800
mm
horizontal circle:
no
segment of the vertical circle:
no
cross level:
no
leveling vial:
yes
length of leveling vial:
60
mm
bubble length of the leveling vial:
20
mm
striding level:
no
designed for work:
basic work
