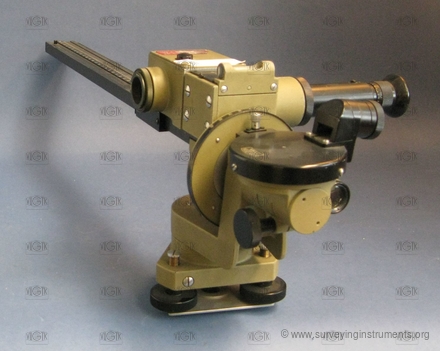

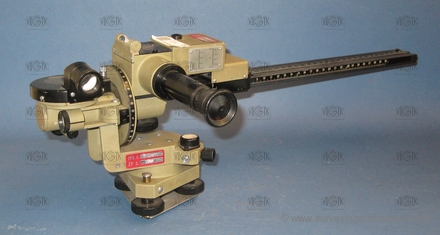

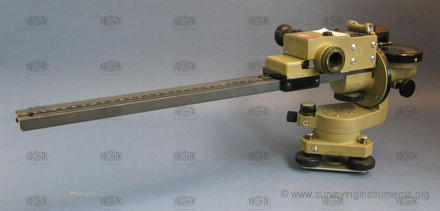

Teletop 6x
Description
The manufacturer's name on the device
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0353
Owner:
České vysoké učení technické v Praze - Stavební fakulta
Manufacturer:
Carl Zeiss Jena
Made:
01.01.1935
Length:
530
mm
Width:
208
mm
Height:
188
mm
Weight:
1785
g
S/N:
91606
Technical parameters
telescope type:
special
tripod connection:
tribrach
type of clamp:
clamp on the axis
compensator:
no
unite:
° ' "
striding level:
no
distance meter type:
optomechanical
construction of the distance meter:
integrated
autoreduction of the length:
yes
variable telescope length:
no
telescope magnification:
6
type of optical plummet:
none
horizontal circle:
no
horizontal circle diameter:
64
mm
main reading scale of the horizontal circle:
index
number of reading scales of the horizontal circle:
1
the smallest segment of the horizontal circle:
10° / 1°
segment of the vertical circle:
yes
segment's range of vertical circle:
40° - 0° - 40°
vertical circle diameter:
84
mm
main reading scale of the vertical circle:
index
number of reading scales of the vertical circle:
1
the smallest segment of the vertical circle:
1° / 30´
cross level:
no
bubble length of the cross level/level parallel with line of collimation:
20
mm
designed for work:
basic work
