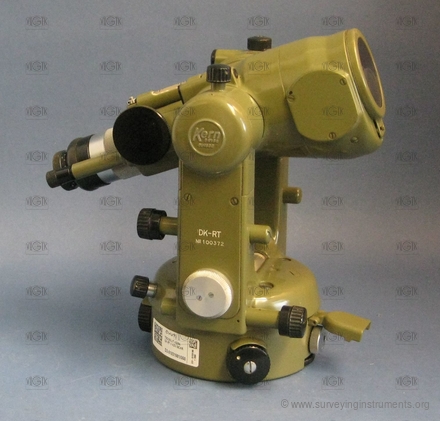

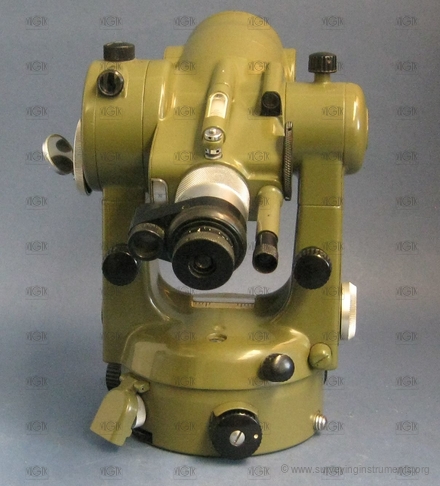

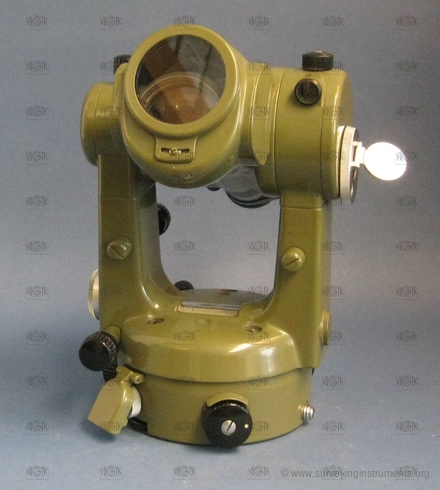

DK-RT
The manufacturer's name on the device
- VÚGTK: S0357
- Owner: České vysoké učení technické v Praze - Stavební fakulta
- Manufacturer: Kern
- Made: 01.01.1960
- Length: 131 mm
- Width: 165 mm
- Height: 218 mm
- Weight: 4250 g
- S/N: 100372
- cross hairs:
-
- telescope type: flip over
- tripod connection: special
- type of clamp: clamp on the axis
- compensator: no
- unite: gon
- distance meter type: optical
- construction of the distance meter: integrated
- distance meter measuring range: 165 m
- autoreduction of the length: yes
- view in the telescope: inverted
- variable telescope length: no
- telescope length with extended eyepiece: 131 mm
- telescope diameter: 47 mm
- minimum telescope focusing distance: 1800 mm
- telescope magnification: 27
- type of optical plummet: none
- compass: none
- horizontal circle diameter: 75 mm
- main reading scale of the horizontal circle: micrometer scale
- number of reading scales of the horizontal circle: 1
- the smallest segment of the horizontal circle: 2 mgon / 0,1 mgon
- setting the horizontal circle to zero: horizontal circle drive knob
- segment of the vertical circle: yes
- segment's range of vertical circle: Stupnice 100.tg v rozsahu ±150
- vertical circle diameter: 50 mm
- main reading scale of the vertical circle: reading microscope
- number of reading scales of the vertical circle: 1
- the smallest segment of the vertical circle: 0,2
- cross level: no
- length of the cross level/level perpendicular with line of collimation: 36 mm
- bubble length of the cross level/level perpendicular with line of collimation: 20 mm
- altitude buble: yes
- leveling vial: yes
- length of leveling vial: 28 mm
- bubble length of the leveling vial: 20 mm
- striding level: no
- sensitivity of the striding level or leveling vial: 30 "
- sensitivity of the alidade level: 30 "
- sensitivity of the altitude level: 30 "
- designed for work: basic work
