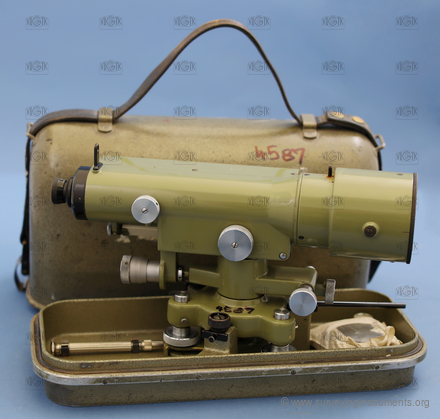

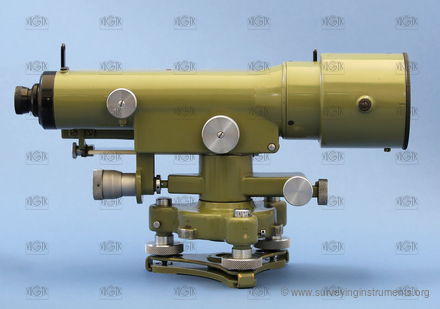

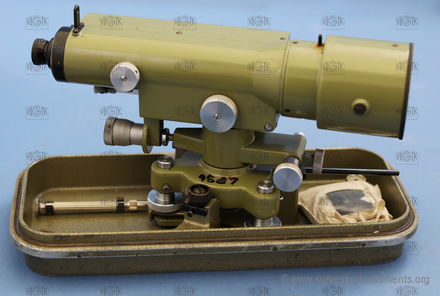

N3
Description

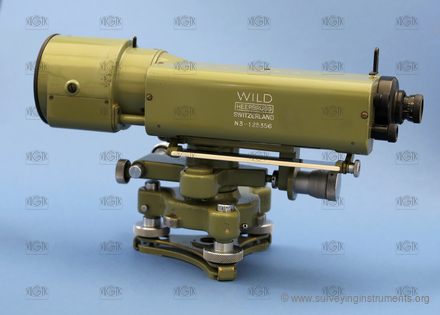

The manufacturer's name on the device
WILD HEERBRUGG SWITZERLAND
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0028
Owner:
unpublished
Manufacturer:
Wild Heerburgg
Made:
01.01.1960
Length:
295
mm
Width:
105
mm
Height:
170
mm
Weight:
3766
g
S/N:
125356
Technical parameters
cross hairs:
telescope type:
non-removable
tripod connection:
tribrach
type of clamp:
clamp on the axis
compensator:
no
elevation screw:
yes
distance meter type:
optical
construction of the distance meter:
integrated
view in the telescope:
inverted
variable telescope length:
no
telescope length with retracted eyepiece:
295
mm
telescope diameter:
50
mm
minimum telescope focusing distance:
2000
mm
telescope magnification:
42
horizontal circle:
no
segment of the vertical circle:
no
cross level:
no
leveling vial:
yes
bubble length of the leveling vial:
60
mm
striding level:
no
sensitivity of the striding level or leveling vial:
10
"
designed for work:
high precise work
