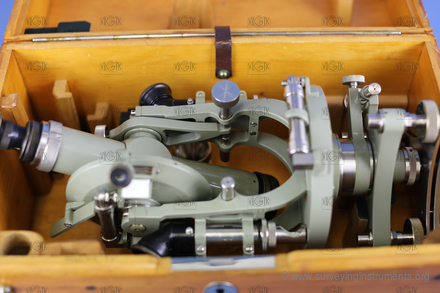

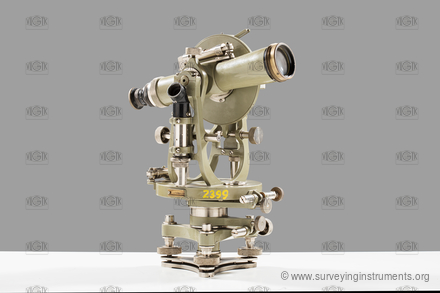

repetiční teodolit
Description
The manufacturer's name on the device
KERN AARAU
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0058
Owner:
Národní technické muzeum
Manufacturer:
Kern
Made:
01.01.1930
Length:
168
mm
Width:
248
mm
Height:
301
mm
Weight:
6110
g
S/N:
26035
Technical parameters
cross hairs:
telescope type:
revolved
tripod connection:
tribrach
type of clamp:
clamp on the axis
compensator:
no
the possibility of determining the elevation:
yes
distance meter type:
optical
construction of the distance meter:
integrated
view in the telescope:
inverted
variable telescope length:
no
telescope length with retracted eyepiece:
240
mm
telescope diameter:
46
mm
minimum telescope focusing distance:
4000
mm
telescope magnification:
22
type of optical plummet:
none
compass:
none
horizontal circle diameter:
135
mm
main reading scale of the horizontal circle:
reading microscope
number of reading scales of the horizontal circle:
2
setting the horizontal circle to zero:
repeating
vertical circle:
yes
vertical circle diameter:
117
mm
main reading scale of the vertical circle:
reading microscope
number of reading scales of the vertical circle:
2
cross level:
yes
length of the cross level/level parallel with line of collimation:
60
mm
bubble length of the cross level/level parallel with line of collimation:
19
mm
length of the cross level/level perpendicular with line of collimation:
60
mm
bubble length of the cross level/level perpendicular with line of collimation:
17
mm
leveling vial:
yes
length of leveling vial:
60
mm
bubble length of the leveling vial:
17
mm
striding level:
no
altitude buble:
yes
lenght of the altitude level:
60
mm
bubble length of the altitude level:
20
mm
