levelling instrument – Kraft
Description
The manufacturer's name on the device
E. KRAFT & SOHN IN WIEN
Interesting construction features
Information about the use of devices
Information about the device condition
Basic data
VÚGTK:
S0001
Owner:
Národní technické muzeum
Manufacturer:
Kraft
Made:
02.01.1855
Length:
128
mm
Width:
307
mm
Height:
158
mm
Weight:
3630
g
S/N:
106
Technical parameters
cross hairs:
telescope type:
reversible
tripod connection:
special
type of clamp:
peripheral clamp
compensator:
no
unite:
° ' "
elevation screw:
yes
distance meter type:
optical
construction of the distance meter:
integrated
view in the telescope:
inverted
variable telescope length:
yes
telescope length with retracted eyepiece:
441
mm
telescope length with extended eyepiece:
477
mm
telescope diameter:
43
mm
minimum telescope focusing distance:
4020
mm
telescope magnification:
20
horizontal circle:
no

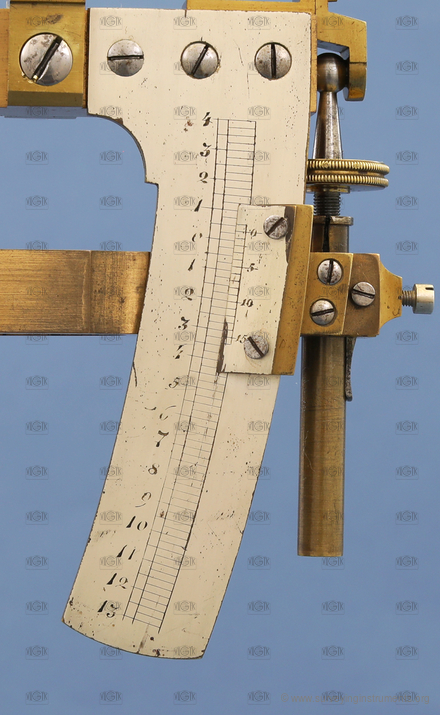

segment of the vertical circle:
yes
segment's range of vertical circle:
-4 - +13
vertical circle diameter:
122
mm
main reading scale of the vertical circle:
vernier
number of reading scales of the vertical circle:
1
cross level:
no
length of the cross level/level parallel with line of collimation:
131
mm
bubble length of the cross level/level parallel with line of collimation:
28
mm
leveling vial:
no
striding level:
yes
sensitivity of the alidade level:
240
"
designed for work:
basic work
