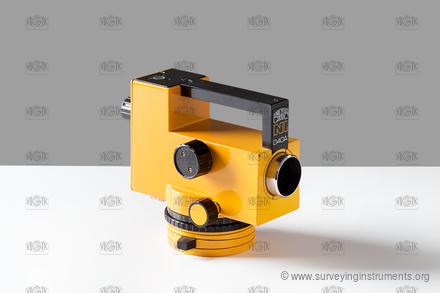

Ni 040A
The manufacturer's name on the device
- Carl Zeiss Jena
- VÚGTK: S0010
- Owner: Národní technické muzeum
- Manufacturer: Carl Zeiss Jena
- Made: 01.01.1980
- Length: 106 mm
- Width: 186 mm
- Height: 145 mm
- Weight: 1490 g
- S/N: 005393
- cross hairs:
-
- telescope type: non-removable
- tripod connection: tribrach
- type of clamp: endless
- compensator: yes
- unite: gon
- elevation screw: no
- distance meter type: optical
- construction of the distance meter: integrated
- view in the telescope: erected
- variable telescope length: no
- telescope length with retracted eyepiece: 188 mm
- telescope length with extended eyepiece: 191 mm
- telescope diameter: 38 mm
- minimum telescope focusing distance: 470 mm
- telescope magnification: 20

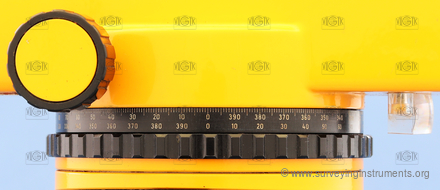

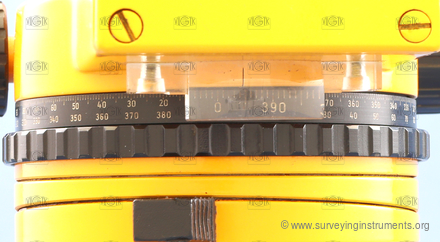

- horizontal circle: yes
- horizontal circle diameter: 80 mm
- main reading scale of the horizontal circle: index
- number of reading scales of the horizontal circle: 1
- the smallest segment of the horizontal circle: 1 gon
- segment of the vertical circle: no
- cross level: no
- leveling vial: no
- striding level: no
- designed for work: basic work
