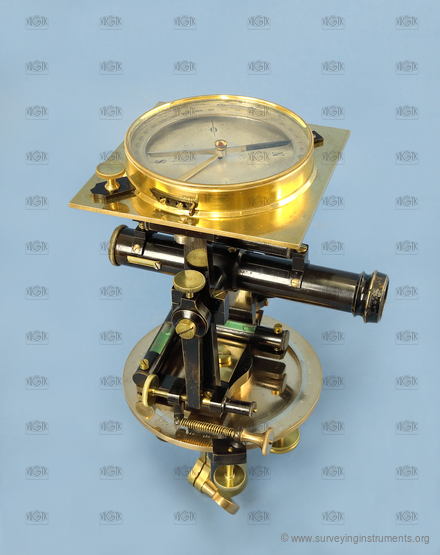

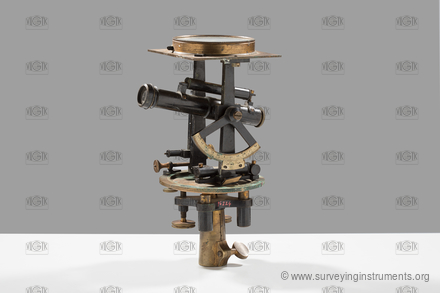

tachymetre – Haase a Wilhelm
The manufacturer's name on the device
- Ant Haase v Praze
- VÚGTK: S0099
- Owner: Národní technické muzeum
- Manufacturer: Haase a Wilhelm
- Made: 01.01.1890
- Length: 150 mm
- Width: 123 mm
- Height: 251 mm
- Weight: 2170 g
- S/N:
- telescope type: flip over
- tripod connection: special
- type of clamp: peripheral clamp
- compensator: no
- unite: ° ' "
- view in the telescope: inverted
- variable telescope length: yes
- telescope length with retracted eyepiece: 457 mm
- telescope length with extended eyepiece: 463 mm
- telescope diameter: 17 mm
- minimum telescope focusing distance: 7200 mm
- telescope magnification: 7
- type of optical plummet: none

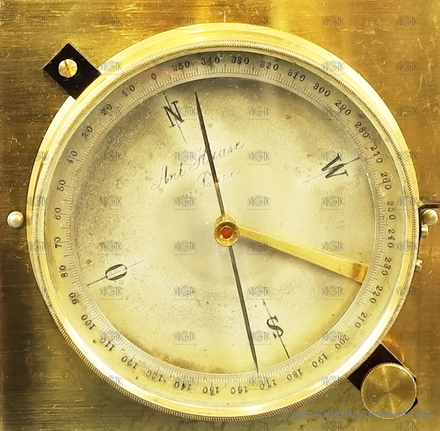

- compass: attachable
- compass design: circle
- compass diameter: 90 mm
- smallest division of the compass scale: 30'
- horizontal circle diameter: 115 mm

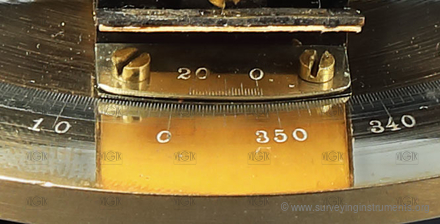

- main reading scale of the horizontal circle: vernier
- number of reading scales of the horizontal circle: 1
- the smallest segment of the horizontal circle: 1'
- setting the horizontal circle to zero: none
- vertical circle: no

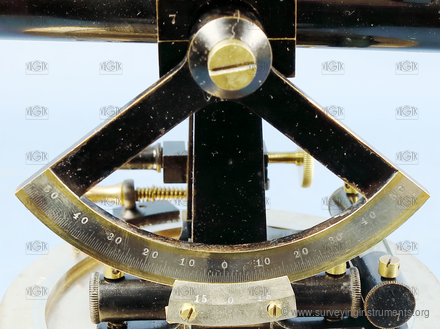

- segment of the vertical circle: yes
- segment's range of vertical circle: +-50
- vertical circle diameter: 104 mm
- main reading scale of the vertical circle: vernier
- number of reading scales of the vertical circle: 1
- the smallest segment of the vertical circle: 1'
- cross level: yes
- length of the cross level/level parallel with line of collimation: 62 mm
- bubble length of the cross level/level parallel with line of collimation: 10 mm
- length of the cross level/level perpendicular with line of collimation: 62 mm
- bubble length of the cross level/level perpendicular with line of collimation: 12 mm
- altitude buble: no
- leveling vial: yes
- length of leveling vial: 78 mm
- bubble length of the leveling vial: 15 mm
- striding level: no
- sensitivity of the alidade level: 50 "
- designed for work: basic work
