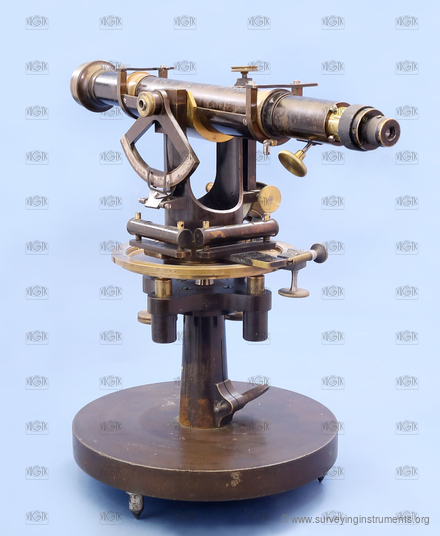

tachymetre – Starke & Kammerer
The manufacturer's name on the device
- Starke & Kammerer Wien k.k. Polytechnikum
- VÚGTK: S0128
- Owner: Vysoké učení technické v Brně
- Manufacturer: Starke & Kammerer
- Made: 02.01.1860
- Length: 357 mm
- Width: 162 mm
- Height: 270 mm
- Weight: 3880 g
- S/N: 1347
- cross hairs:
-
- telescope type: reversible
- tripod connection: special
- type of clamp: peripheral clamp
- compensator: no
- unite: ° ' "
- distance meter type: electronic
- construction of the distance meter: integrated
- autoreduction of the length: no
- view in the telescope: inverted
- variable telescope length: yes
- telescope length with retracted eyepiece: 355 mm
- telescope length with extended eyepiece: 380 mm
- telescope diameter: 25 mm
- type of optical plummet: none
- compass: none
- horizontal circle diameter: 140 mm

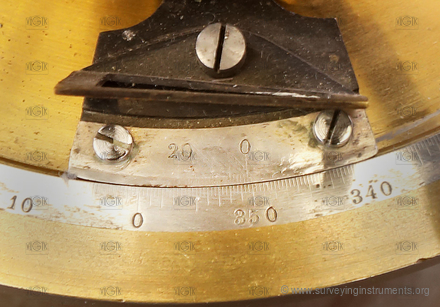

- main reading scale of the horizontal circle: vernier
- number of reading scales of the horizontal circle: 1
- the smallest segment of the horizontal circle: 1'
- setting the horizontal circle to zero: none
- vertical circle: no

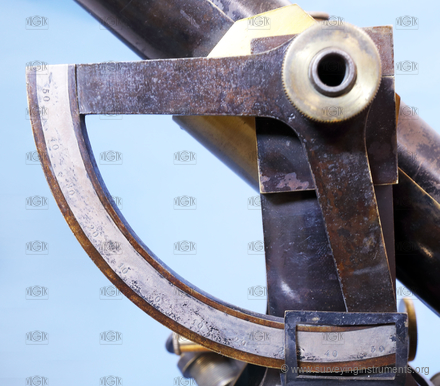

- segment of the vertical circle: yes
- segment's range of vertical circle: 50
- vertical circle diameter: 120 mm
- main reading scale of the vertical circle: vernier
- number of reading scales of the vertical circle: 1
- the smallest segment of the vertical circle: 1'
- cross level: yes
- length of the cross level/level parallel with line of collimation: 65 mm
- bubble length of the cross level/level parallel with line of collimation: 13 mm
- length of the cross level/level perpendicular with line of collimation: 65 mm
- bubble length of the cross level/level perpendicular with line of collimation: 13 mm
- altitude buble: no
- leveling vial: no
- striding level: no
- sensitivity of the alidade level: 140 "
- designed for work: basic work
