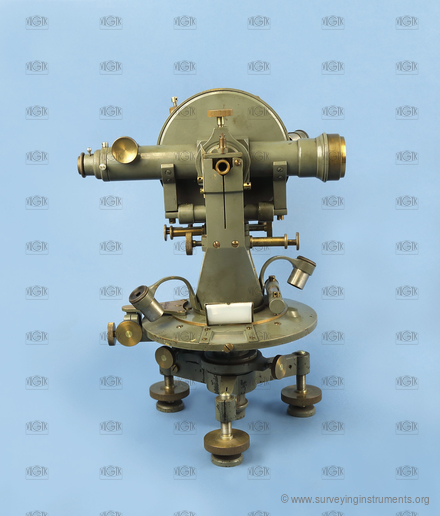

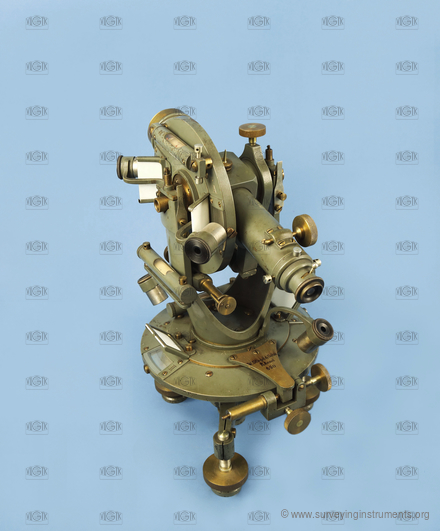

theodolite – W. Stiegel & Sohn Kassel
Description
The manufacturer's name on the device
W. Stiegel & Sohn Kassel
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0144
Owner:
Hornicko-geologická fakulta, VŠB-TUO
Manufacturer:
W. Stiegel & Sohn Kassel
Made:
01.01.1920
Length:
208
mm
Width:
158
mm
Height:
275
mm
Weight:
4920
g
S/N:
690
Technical parameters
cross hairs:
telescope type:
reversible
tripod connection:
tribrach
type of clamp:
clamp on the axis
compensator:
no
unite:
° ' "
the possibility of determining the elevation:
yes
distance meter type:
optical
construction of the distance meter:
integrated
view in the telescope:
inverted
variable telescope length:
yes
telescope length with retracted eyepiece:
205
mm
telescope length with extended eyepiece:
237
mm
telescope diameter:
25
mm
minimum telescope focusing distance:
1400
mm
telescope magnification:
20
type of optical plummet:
none
compass:
none
horizontal circle diameter:
140
mm

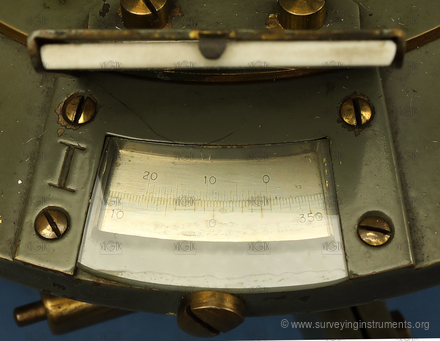

main reading scale of the horizontal circle:
vernier
number of reading scales of the horizontal circle:
2
the smallest segment of the horizontal circle:
30"
setting the horizontal circle to zero:
repeating
vertical circle:
yes
segment of the vertical circle:
no
vertical circle diameter:
108
mm

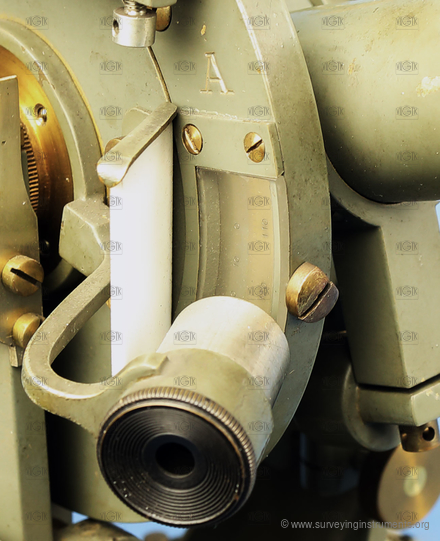

main reading scale of the vertical circle:
vernier
number of reading scales of the vertical circle:
2
the smallest segment of the vertical circle:
30"
cross level:
yes
length of the cross level/level parallel with line of collimation:
75
mm
bubble length of the cross level/level parallel with line of collimation:
12
mm
length of the cross level/level perpendicular with line of collimation:
68
mm
bubble length of the cross level/level perpendicular with line of collimation:
12
mm
leveling vial:
yes
length of leveling vial:
75
mm
bubble length of the leveling vial:
16
mm
striding level:
no
altitude buble:
yes
lenght of the altitude level:
52
mm
bubble length of the altitude level:
12
mm
sensitivity of the striding level or leveling vial:
30
"
sensitivity of the alidade level:
40
"
sensitivity of the altitude level:
80
"
designed for work:
basic work
