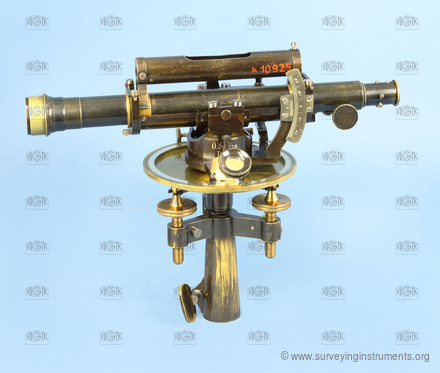

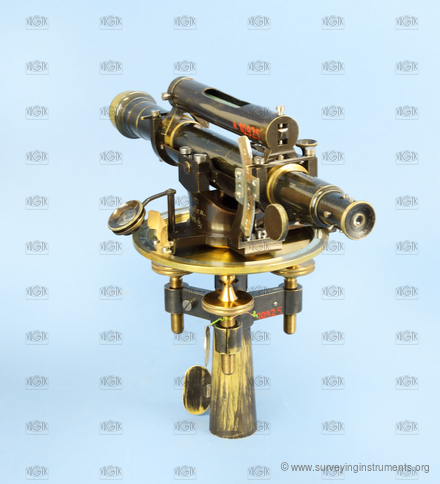

levelling instrument – Spitra
Description
The manufacturer's name on the device
O. Spitra Prag.
Construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0163
Owner:
Národní technické muzeum
Manufacturer:
Spitra
Made:
01.01.1865
Length:
315
mm
Width:
145
mm
Height:
244
mm
Weight:
2920
g
S/N:
Technical parameters
cross hairs:
telescope type:
reversible
tripod connection:
special
type of clamp:
endless
compensator:
no
unite:
° ' "
elevation screw:
yes
distance meter type:
optical
construction of the distance meter:
integrated
view in the telescope:
erected
variable telescope length:
yes
telescope length with retracted eyepiece:
312
mm
telescope length with extended eyepiece:
334
mm
telescope diameter:
22
mm
minimum telescope focusing distance:
3350
mm
telescope magnification:
25

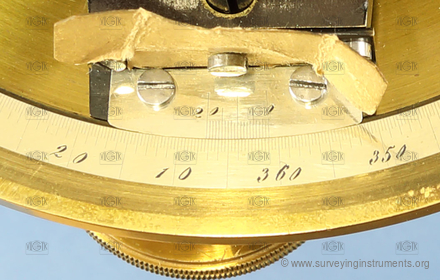

horizontal circle:
yes
horizontal circle diameter:
130
mm
main reading scale of the horizontal circle:
vernier
number of reading scales of the horizontal circle:
1
the smallest segment of the horizontal circle:
1'

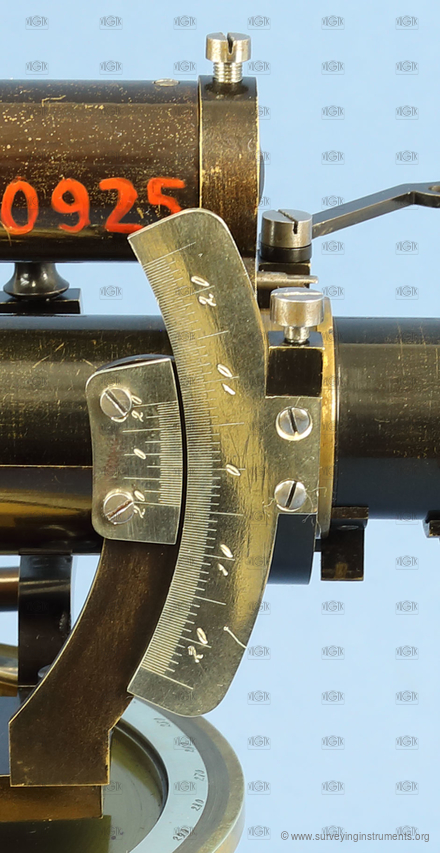

segment of the vertical circle:
yes
segment's range of vertical circle:
40°
vertical circle diameter:
120
mm
main reading scale of the vertical circle:
vernier
number of reading scales of the vertical circle:
1
the smallest segment of the vertical circle:
1'
cross level:
no
leveling vial:
yes
length of leveling vial:
135
mm
bubble length of the leveling vial:
26
mm
striding level:
no
sensitivity of the striding level or leveling vial:
60
"
designed for work:
basic work
