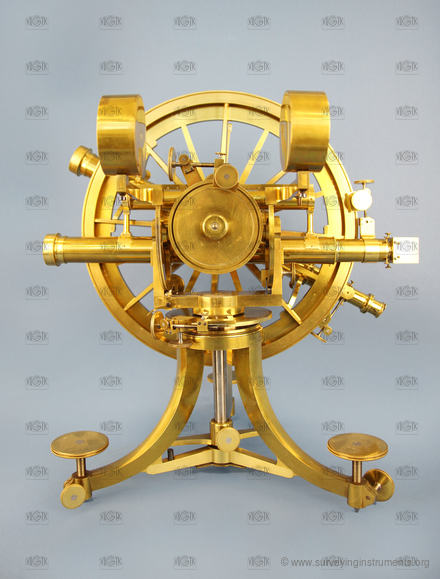

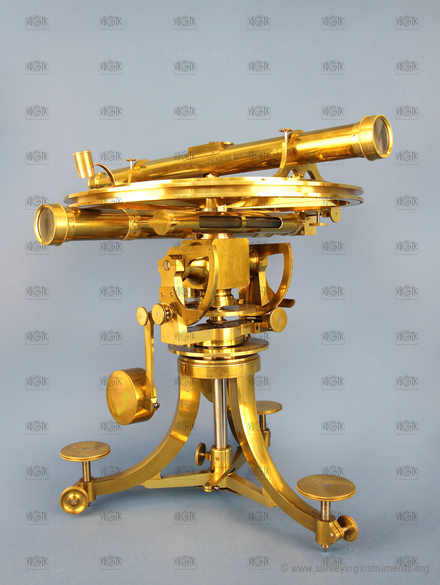

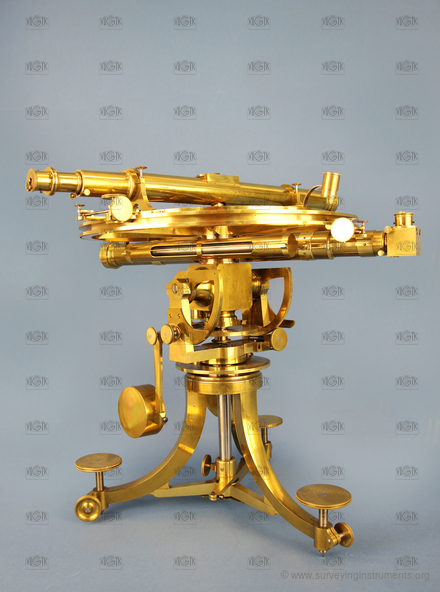

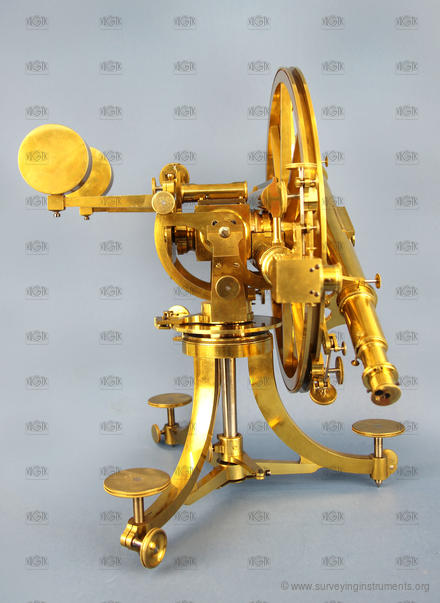

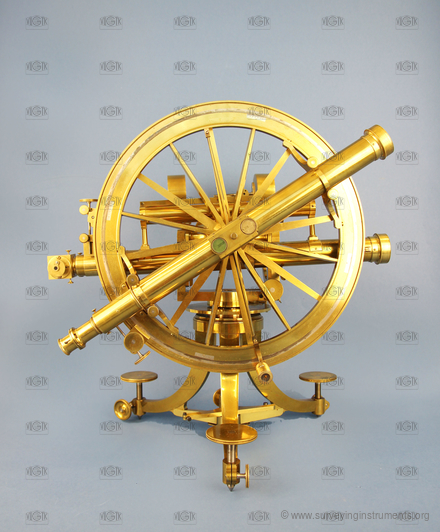

other devices for measuring angle – Reichenbach
Description
The manufacturer's name on the device
Reichenbach Utzschneider u.Liebherr in München
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0172
Owner:
Národní technické muzeum
Manufacturer:
Reichenbach
Made:
01.01.1810
Length:
492
mm
Width:
350
mm
Height:
434
mm
Weight:
16590
g
S/N:
Technical parameters
telescope type:
reversible
tripod connection:
special
type of clamp:
peripheral clamp
compensator:
no
unite:
° ' "
the possibility of determining the elevation:
no
altitude buble:
no
view in the telescope:
inverted
variable telescope length:
yes
telescope length with retracted eyepiece:
465
mm
telescope diameter:
33
mm
telescope magnification:
33
type of optical plummet:
none
compass:
none
horizontal circle:
yes
horizontal circle diameter:
350
mm

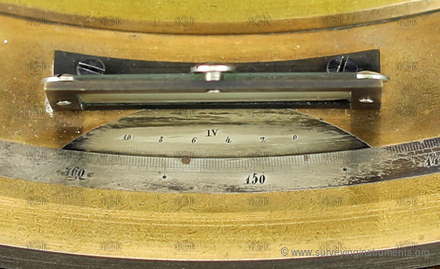

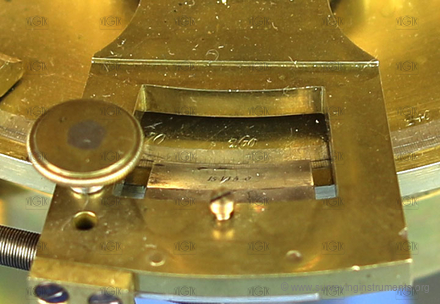

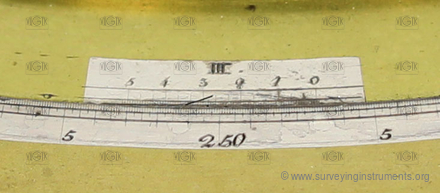

main reading scale of the horizontal circle:
vernier
the smallest segment of the horizontal circle:
4"
number of reading scales of the horizontal circle:
4
setting the horizontal circle to zero:
none
vertical circle:
yes
segment of the vertical circle:
no
vertical circle diameter:
350
mm

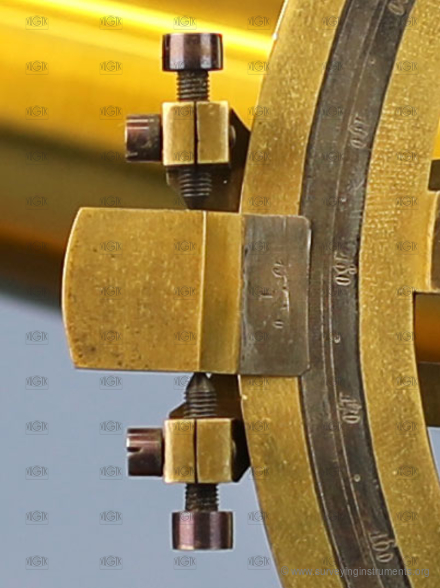

main reading scale of the vertical circle:
vernier
number of reading scales of the vertical circle:
4
the smallest segment of the vertical circle:
4"
cross level:
yes
length of the cross level/level perpendicular with line of collimation:
70
mm

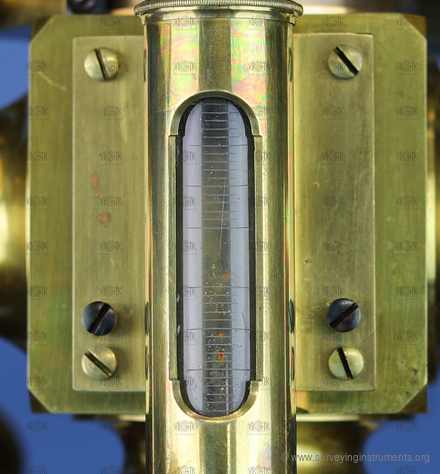

length of leveling vial:
230
mm
striding level:
no
designed for work:
high precise work
