other devices for measuring angle – --undefined--

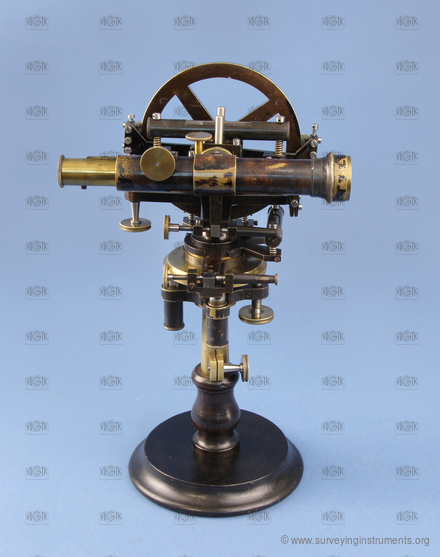

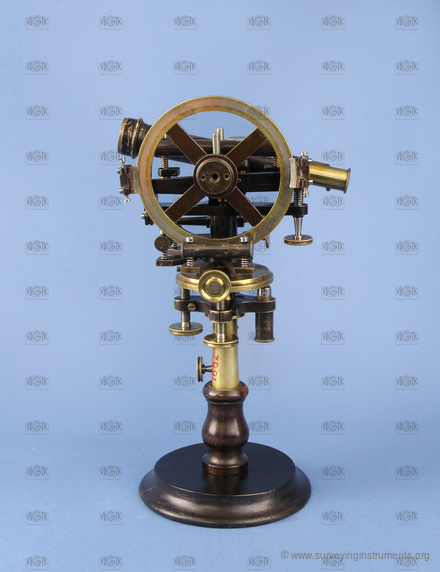

Description
The manufacturer's name on the device
not specified
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0197
Owner:
Národní technické muzeum
Manufacturer:
--undefined--
Made:
01.01.1905
Length:
180
mm
Width:
150
mm
Height:
250
mm
Weight:
2960
g
S/N:
449
Technical parameters
cross hairs:
telescope type:
non-removable
tripod connection:
special
type of clamp:
clamp on the axis
compensator:
no
unite:
° ' "
the possibility of determining the elevation:
yes
construction of the distance meter:
integrated
distance meter type:
optical
altitude buble:
no
view in the telescope:
inverted
variable telescope length:
yes
telescope length with retracted eyepiece:
179
mm
telescope length with extended eyepiece:
203
mm
telescope diameter:
25
mm
minimum telescope focusing distance:
1700
mm
telescope magnification:
17
type of optical plummet:
none
compass:
none
horizontal circle:
no
setting the horizontal circle to zero:
none
vertical circle:
yes
segment of the vertical circle:
no
vertical circle diameter:
125
mm

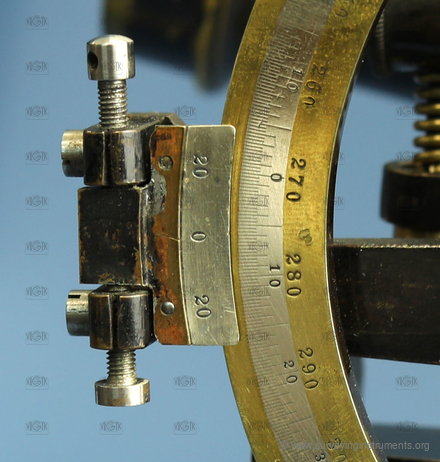

main reading scale of the vertical circle:
vernier
number of reading scales of the vertical circle:
2
the smallest segment of the vertical circle:
1'
cross level:
yes
length of the cross level/level parallel with line of collimation:
55
mm
bubble length of the cross level/level parallel with line of collimation:
9
mm
length of the cross level/level perpendicular with line of collimation:
58
mm
length of leveling vial:
105
mm
bubble length of the leveling vial:
21
mm
striding level:
no
sensitivity of the striding level or leveling vial:
25
"
designed for work:
basic work
