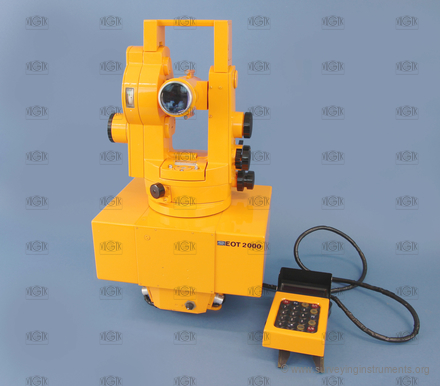

EOT 2000

The manufacturer's name on the device
  • CARL ZEISS JENA

Interesting construction features

Information about the use of device

Information about the device condition

  • VÚGTK: S0213
  • Owner: Národní technické muzeum
  • Manufacturer: Carl Zeiss Jena
  • Made: 01.01.1980
  • Length: 268 mm
  • Width: 250 mm
  • Height: 470 mm
  • Weight: 10810 g
  • S/N: 200835

  • cross hairs:
  • NK_043
  • telescope type: revolved
  • tripod connection: tribrach
  • type of clamp: other
  • compensator: yes
  • unite: gon
  • the possibility of determining the elevation: yes
  • distance meter type: electronic
  • construction of the distance meter: integrated
  • distance meter measuring range: 2000 m
  • view in the telescope: erected
  • telescope length with retracted eyepiece: 180 mm
  • telescope diameter: 39 mm
  • minimum telescope focusing distance: 1800 mm
  • telescope magnification: 30
  • type of optical plummet: in the body of device
  • horizontal circle: yes
  • horizontal circle diameter: 110 mm
  • main reading scale of the horizontal circle: micrometer scale
  • the smallest segment of the horizontal circle: 10"
  • setting the horizontal circle to zero: horizontal circle drive knob
  • vertical circle: yes
  • vertical circle diameter: 104 mm
  • main reading scale of the vertical circle: micrometer scale
  • the smallest segment of the vertical circle: 10"
  • sensitivity of the alidade level: 20 "
  • designed for work: precise work
