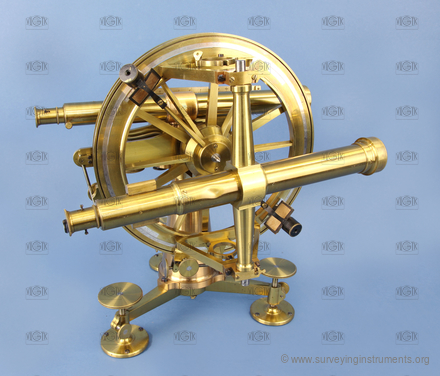

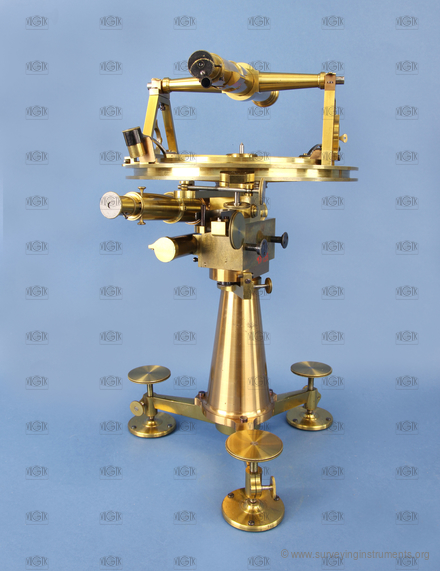

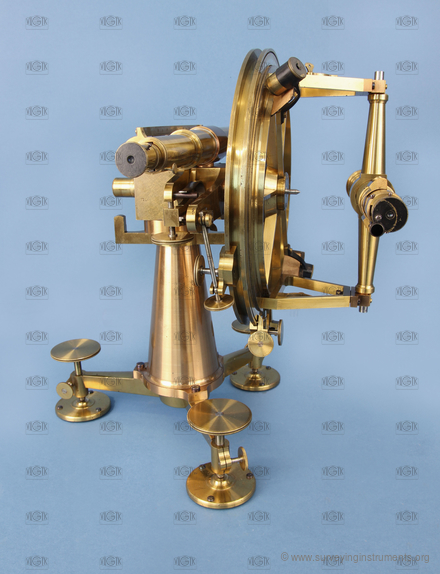

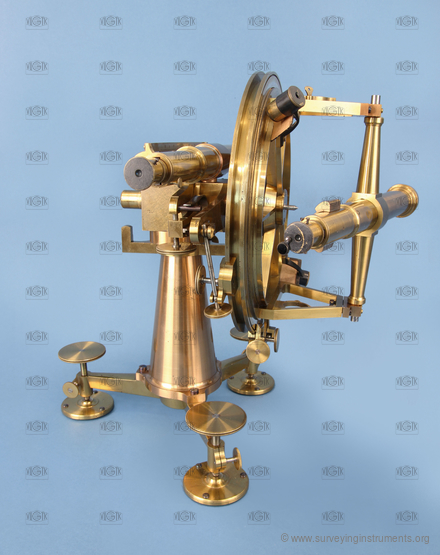

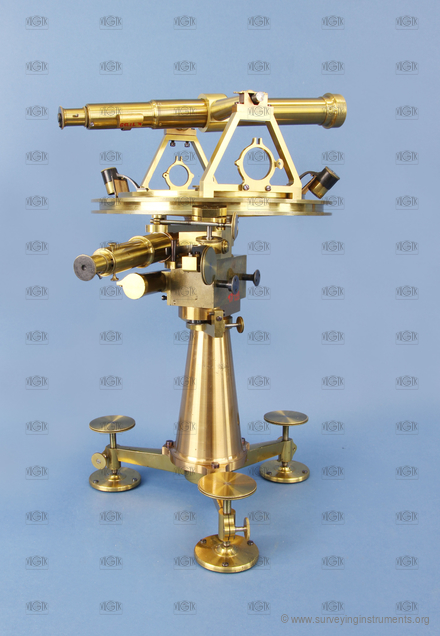

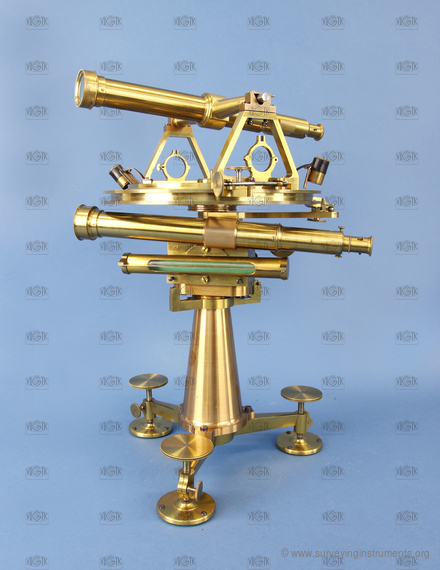

theodolite – Reichenbach

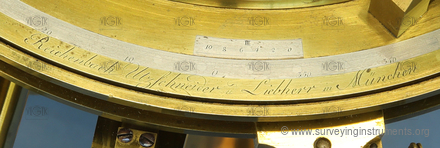

The manufacturer's name on the device
  • Reichenbach Utzschneider Liebherr in München

Interesting construction features

Information about the use of device

Information about the device condition

  • VÚGTK: S0214
  • Owner: Národní technické muzeum
  • Manufacturer: Reichenbach
  • Made: 01.01.1817
  • Length: 333 mm
  • Width: 284 mm
  • Height: 429 mm
  • Weight: 9190 g
  • S/N:

  • cross hairs:
  • NK_001
  • telescope type: reversible
  • tripod connection: N/A
  • type of clamp: peripheral clamp
  • compensator: no
  • unite: ° ' "
  • the possibility of determining the elevation: no
  • construction of the distance meter: N/A
  • variable telescope length: no
  • telescope length with retracted eyepiece: 306 mm
  • telescope diameter: 29 mm
  • telescope magnification: 25
  • type of optical plummet: none
  • compass: none
  • horizontal circle diameter: 248 mm
  • main reading scale of the horizontal circle: vernier
  • number of reading scales of the horizontal circle: 4
  • the smallest segment of the horizontal circle: 10"
  • setting the horizontal circle to zero: repeating
  • vertical circle: no
  • segment of the vertical circle: no
  • cross level: no
  • length of the cross level/level perpendicular with line of collimation: 185 mm
  • bubble length of the cross level/level perpendicular with line of collimation: 20 mm
  • leveling vial: no
  • striding level: no
  • altitude buble: no
  • designed for work: high precise work
