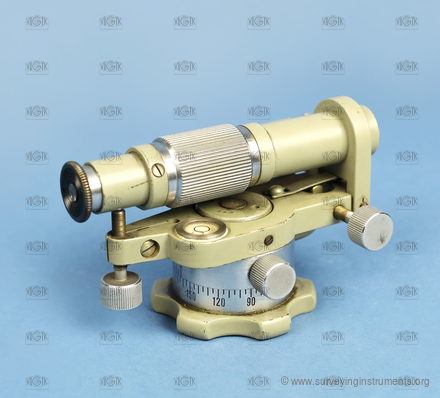

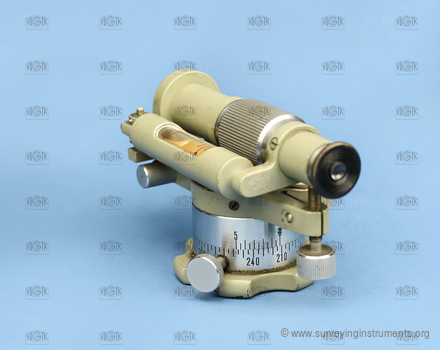

KNK 8,8x
The manufacturer's name on the device
- Srb a Štys Praha, Czecho-Slovakia
- VÚGTK: S0225
- Owner: Hornicko-geologická fakulta, VŠB-TUO
- Manufacturer: Srb a Štys
- Made: 01.01.1939
- Length: 98 mm
- Width: 55 mm
- Height: 63 mm
- Weight: 530 g
- S/N: 358
- cross hairs:
-
- telescope type: non-removable
- tripod connection: special
- type of clamp: clamp on the axis
- compensator: no
- unite: ° ' "
- elevation screw: yes
- distance meter type: optical
- construction of the distance meter: integrated
- view in the telescope: inverted
- variable telescope length: no
- telescope length with retracted eyepiece: 98 mm
- telescope diameter: 13 mm
- minimum telescope focusing distance: 600 mm
- telescope magnification: 10

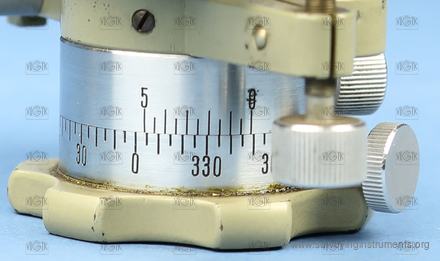

- horizontal circle: yes
- horizontal circle diameter: 36 mm
- main reading scale of the horizontal circle: vernier
- number of reading scales of the horizontal circle: 1
- the smallest segment of the horizontal circle: 30'
- segment of the vertical circle: no
- cross level: no
- leveling vial: yes
- length of leveling vial: 56 mm
- bubble length of the leveling vial: 18 mm
- striding level: no
- sensitivity of the striding level or leveling vial: 40 "
- designed for work: low precise work
