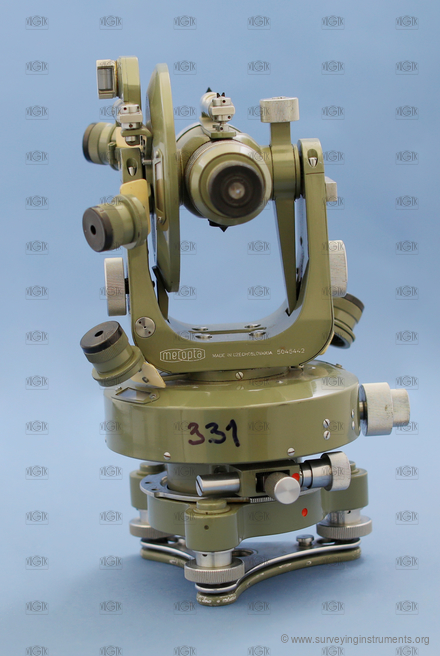

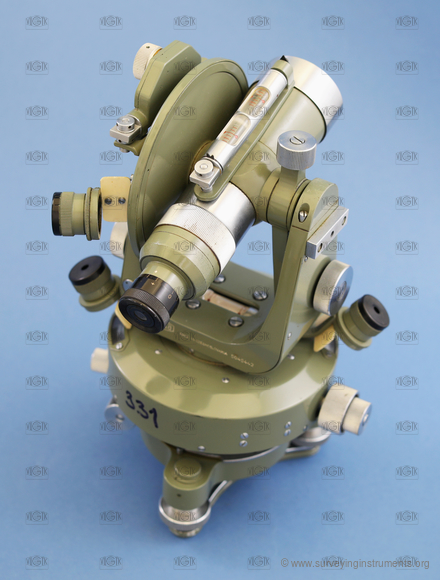

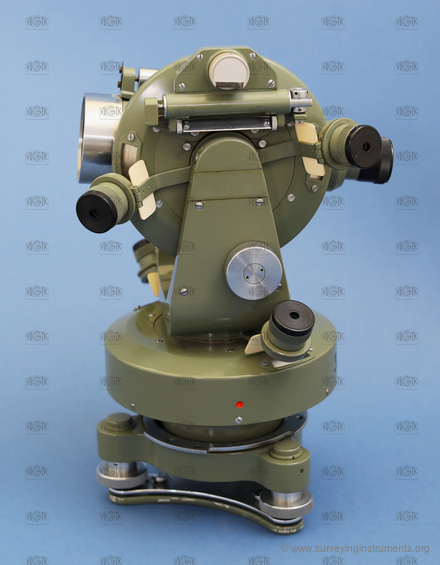

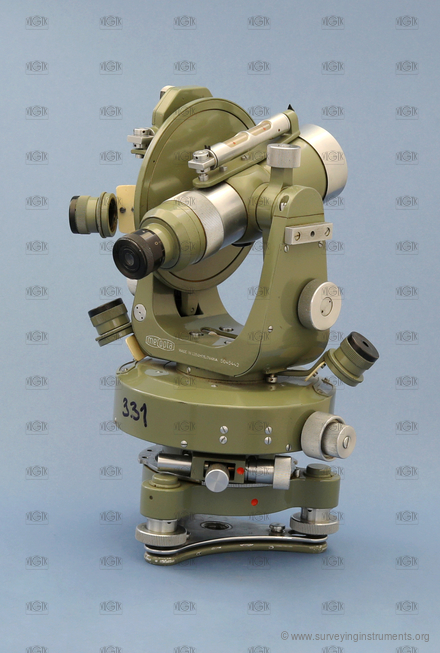

Th 30x
Description
The manufacturer's name on the device
Meopta
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0026
Owner:
unpublished
Manufacturer:
Meopta
Made:
01.01.1950
Length:
180
mm
Width:
180
mm
Height:
275
mm
Weight:
5030
g
S/N:
5045442
Technical parameters
cross hairs:
telescope type:
flip over
tripod connection:
tribrach
type of clamp:
clamp on the axis
compensator:
no
unite:
gon
the possibility of determining the elevation:
yes
distance meter type:
optical
construction of the distance meter:
integrated
view in the telescope:
inverted
variable telescope length:
no
telescope length with retracted eyepiece:
174
mm
telescope diameter:
50
mm
telescope magnification:
30
type of optical plummet:
none
compass:
none
horizontal circle diameter:
120
mm
main reading scale of the horizontal circle:
vernier
number of reading scales of the horizontal circle:
2
the smallest segment of the horizontal circle:
1'
setting the horizontal circle to zero:
repeating
vertical circle:
yes
vertical circle diameter:
100
mm
main reading scale of the vertical circle:
vernier
number of reading scales of the vertical circle:
2
the smallest segment of the vertical circle:
1'
cross level:
no
leveling vial:
yes
length of leveling vial:
70
mm
bubble length of the leveling vial:
26
mm
striding level:
no
altitude buble:
yes
sensitivity of the striding level or leveling vial:
25
"
sensitivity of the alidade level:
40
"
sensitivity of the altitude level:
20
"
designed for work:
basic work
