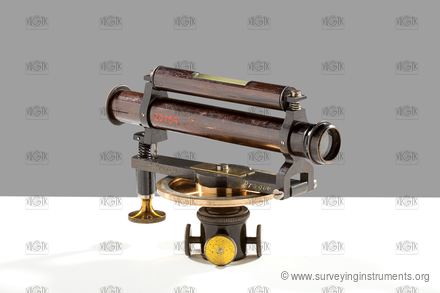

levelling instrument – Spitra
Description
The manufacturer's name on the device
O. SPITRA PRAGUE
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0003
Owner:
Národní technické muzeum
Manufacturer:
Spitra
Made:
01.01.1880
Length:
76
mm
Width:
127
mm
Height:
106
mm
Weight:
640
g
S/N:
Technical parameters
telescope type:
non-removable
tripod connection:
pin with 4 horizontal screws
type of clamp:
none
compensator:
no
unite:
° ' "
elevation screw:
yes
view in the telescope:
inverted
variable telescope length:
yes
telescope length with retracted eyepiece:
158
mm
telescope length with extended eyepiece:
170
mm
telescope diameter:
25
mm
minimum telescope focusing distance:
3600
mm
telescope magnification:
8

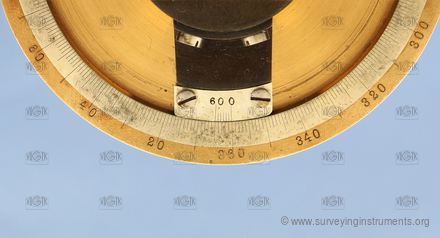

horizontal circle:
yes
horizontal circle diameter:
77
mm

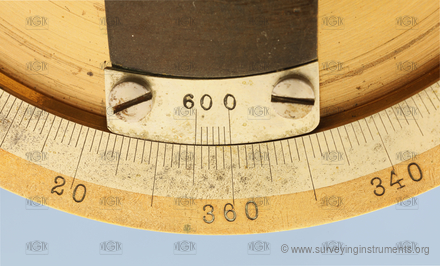

main reading scale of the horizontal circle:
vernier
number of reading scales of the horizontal circle:
1
the smallest segment of the horizontal circle:
10'
segment of the vertical circle:
no
cross level:
no
leveling vial:
yes
length of leveling vial:
97
mm
bubble length of the leveling vial:
21
mm
sensitivity of the striding level or leveling vial:
80
"
designed for work:
low precise work
