Zeměměřické a astronomické přístroje používané na území ČR od 16. do konce 20. století
triangulační
The manufacturer's name on the device
- VÚGTK: S0283
- Owner: České vysoké učení technické v Praze - Stavební fakulta
- Manufacturer: Heyde
- Made: 01.01.1890
- Length: 537 mm
- Width: 372 mm
- Height: 370 mm
- Weight: 12237 g
- S/N: 3623
- cross hairs:
-
- telescope type: reversible
- tripod connection: special
- type of clamp: clamp on the axis
- compensator: no
- unite: ° ' "
- the possibility of determining the elevation: no
- view in the telescope: inverted
- variable telescope length: yes
- telescope length with retracted eyepiece: 521 mm
- telescope length with extended eyepiece: 537 mm
- telescope diameter: 56 mm
- type of optical plummet: none
- compass: none
- horizontal circle diameter: 238 mm

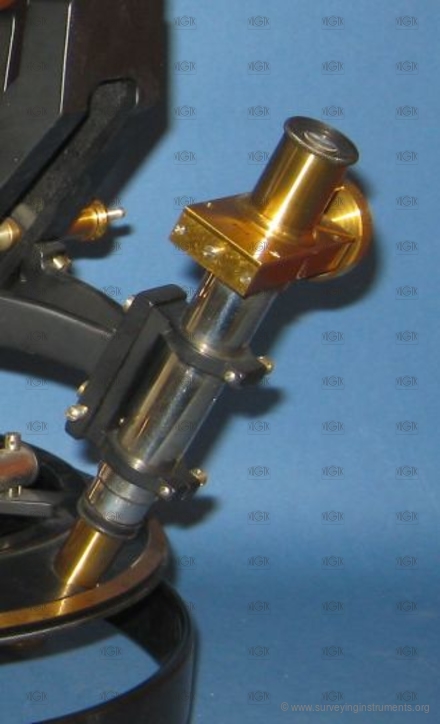

- main reading scale of the horizontal circle: micrometer knob
- number of reading scales of the horizontal circle: 2
- setting the horizontal circle to zero: none
- vertical circle: no
- cross level: yes
- length of the cross level/level parallel with line of collimation: 35 mm
- bubble length of the cross level/level parallel with line of collimation: 10 mm
- length of the cross level/level perpendicular with line of collimation: 35 mm
- bubble length of the cross level/level perpendicular with line of collimation: 10 mm
- leveling vial: no
- striding level: no
- altitude buble: no
- designed for work: high precise work
