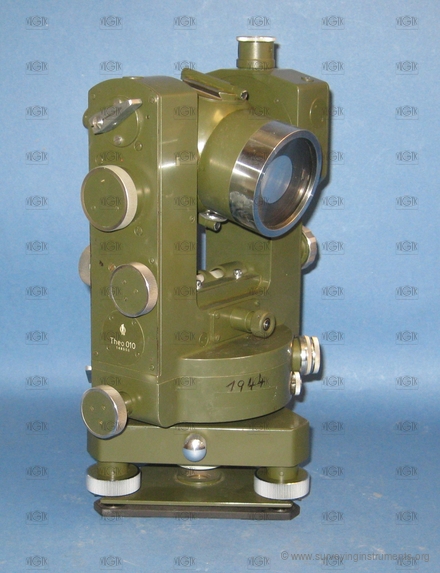

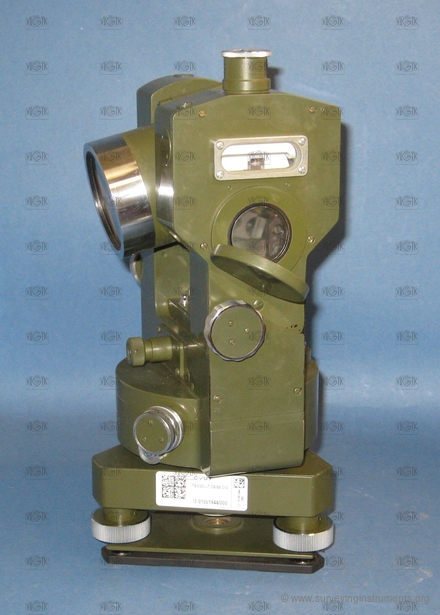

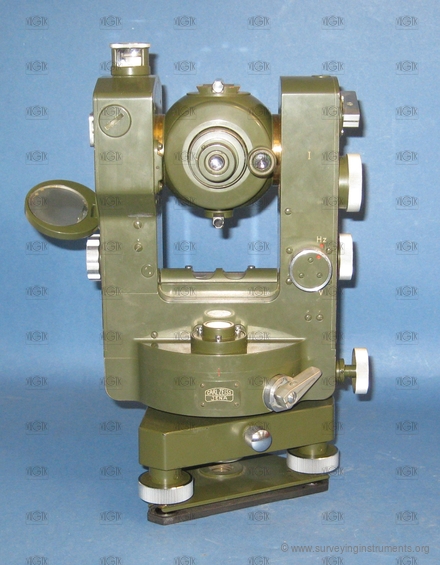

Theo 010
Description
The manufacturer's name on the device
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0293
Owner:
České vysoké učení technické v Praze - Stavební fakulta
Manufacturer:
Carl Zeiss Jena
Made:
01.01.1955
Length:
151
mm
Width:
180
mm
Height:
286
mm
Weight:
4496
g
S/N:
148556
Technical parameters
cross hairs:
telescope type:
revolved
tripod connection:
tribrach
type of clamp:
clamp on the axis
compensator:
no
unite:
° ' "
the possibility of determining the elevation:
yes
distance meter type:
optical
construction of the distance meter:
integrated
view in the telescope:
inverted
variable telescope length:
no
telescope length with extended eyepiece:
142
mm
telescope diameter:
54
mm
telescope magnification:
30
type of optical plummet:
in the body of device
compass:
none
horizontal circle diameter:
80
mm
main reading scale of the horizontal circle:
micrometer scale
number of reading scales of the horizontal circle:
1
the smallest segment of the horizontal circle:
1´
setting the horizontal circle to zero:
horizontal circle drive knob
vertical circle:
yes
vertical circle diameter:
65
mm
main reading scale of the vertical circle:
micrometer scale
the smallest segment of the vertical circle:
1´
cross level:
no
length of the cross level/level perpendicular with line of collimation:
35
mm
bubble length of the cross level/level perpendicular with line of collimation:
12
mm
leveling vial:
no

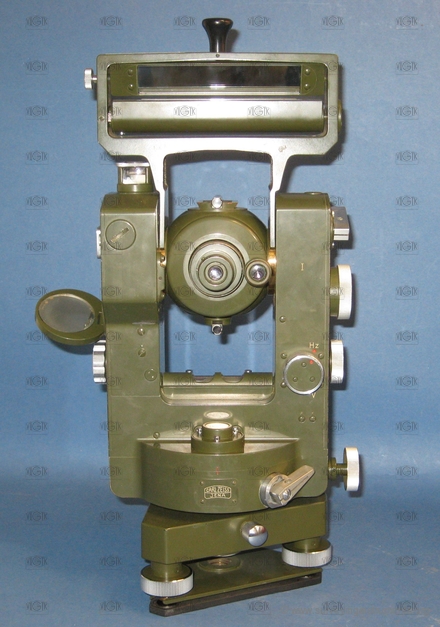

striding level:
yes
bubble length of the striding level:
110
mm
bubble length of the striding level:
20
mm
altitude buble:
yes
lenght of the altitude level:
60
mm
designed for work:
precise work
