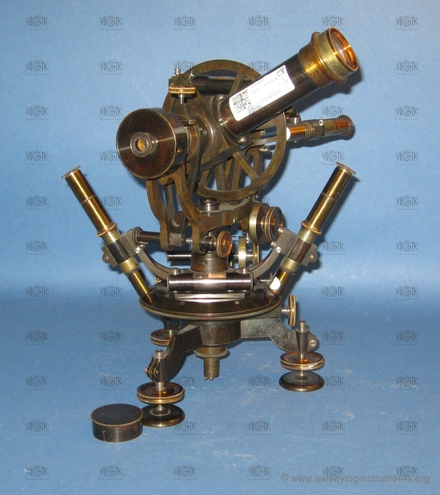

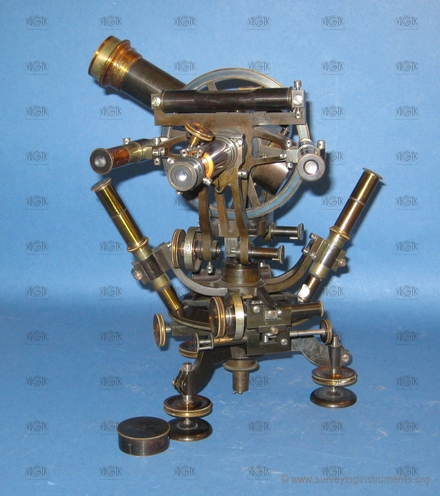

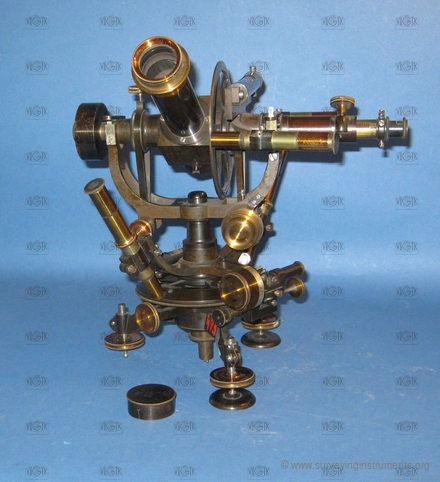

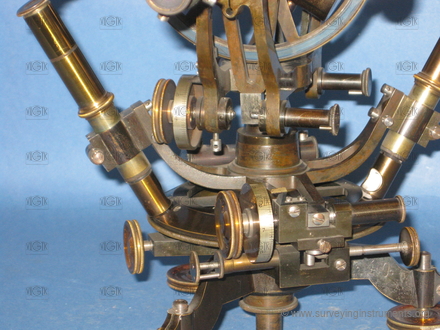

theodolite – Heyde
Description
The manufacturer's name on the device
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0297
Owner:
České vysoké učení technické v Praze - Stavební fakulta
Manufacturer:
Heyde
Made:
01.01.1900
Length:
271
mm
Width:
220
mm
Height:
247
mm
Weight:
3445
g
S/N:
neuvedeno
Technical parameters
cross hairs:
telescope type:
special
tripod connection:
tribrach
type of clamp:
clamp on the axis
compensator:
no
unite:
° ' "
the possibility of determining the elevation:
no
view in the telescope:
inverted
variable telescope length:
yes
telescope length with extended eyepiece:
293
mm
telescope diameter:
27
mm
type of optical plummet:
none
compass:
none
horizontal circle diameter:
108
mm
main reading scale of the horizontal circle:
micrometer knob
number of reading scales of the horizontal circle:
2
the smallest segment of the horizontal circle:
5´/ 3“
setting the horizontal circle to zero:
none
vertical circle:
yes
vertical circle diameter:
103
mm
main reading scale of the vertical circle:
vernier microscope
number of reading scales of the vertical circle:
2
cross level:
no
length of the cross level/level parallel with line of collimation:
35
mm
bubble length of the cross level/level parallel with line of collimation:
11
mm
leveling vial:
no
striding level:
no
altitude buble:
yes
lenght of the altitude level:
60
mm
bubble length of the altitude level:
20
mm
designed for work:
precise work
