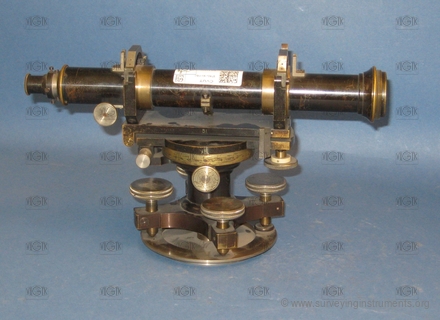

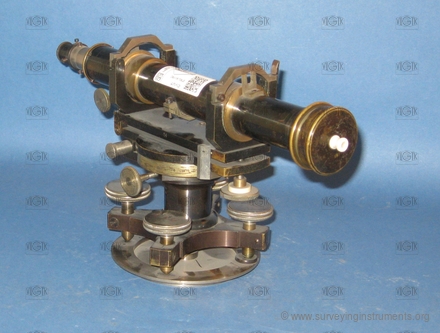

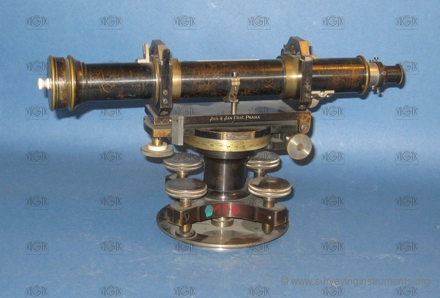

levelling instrument – J. & J. Frič
Description
The manufacturer's name on the device
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0303
Owner:
České vysoké učení technické v Praze - Stavební fakulta
Manufacturer:
J. & J. Frič
Made:
01.01.1890
Length:
292
mm
Width:
210
mm
Height:
155
mm
Weight:
2173
g
S/N:
51
Technical parameters
cross hairs:
telescope type:
reversible
tripod connection:
special
type of clamp:
clamp on the axis
compensator:
no
unite:
° ' "
elevation screw:
yes
view in the telescope:
inverted
variable telescope length:
yes
telescope length with retracted eyepiece:
276
mm
telescope length with extended eyepiece:
292
mm
telescope diameter:
29
mm
horizontal circle:
yes
horizontal circle diameter:
72
mm
main reading scale of the horizontal circle:
index
number of reading scales of the horizontal circle:
1
the smallest segment of the horizontal circle:
1° / 1'
segment of the vertical circle:
no
cross level:
no
striding level:
no
designed for work:
basic work
