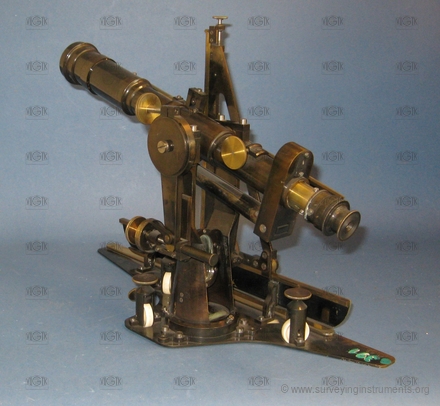

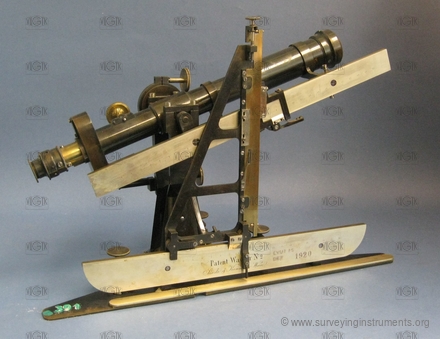

Patent Wagner No. 2
Description
The manufacturer's name on the device
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0355
Owner:
České vysoké učení technické v Praze - Stavební fakulta
Manufacturer:
Starke & Kammerer
Made:
01.01.1895
Length:
384
mm
Width:
133
mm
Height:
270
mm
Weight:
2925
g
S/N:
Technical parameters
cross hairs:
telescope type:
special
tripod connection:
N/A
type of clamp:
peripheral clamp
compensator:
no
unite:
meter
striding level:
no
the possibility of determining the elevation:
yes
distance meter type:
mechanical
construction of the distance meter:
integrated
distance meter measuring range:
300
m
autoreduction of the length:
yes
altitude buble:
no
view in the telescope:
inverted
variable telescope length:
yes
telescope length with retracted eyepiece:
341
mm
telescope length with extended eyepiece:
368
mm
telescope diameter:
35
mm
minimum telescope focusing distance:
5000
mm
type of optical plummet:
none
horizontal circle:
no
vertical circle:
no
segment's range of vertical circle:
±60°
cross level:
yes
length of the cross level/level parallel with line of collimation:
32
mm
bubble length of the cross level/level parallel with line of collimation:
20
mm
length of the cross level/level perpendicular with line of collimation:
32
mm
bubble length of the cross level/level perpendicular with line of collimation:
20
mm
length of leveling vial:
60
mm
bubble length of the leveling vial:
30
mm
sensitivity of the striding level or leveling vial:
30
"
designed for work:
basic work
