Zeměměřické a astronomické přístroje používané na území ČR od 16. do konce 20. století

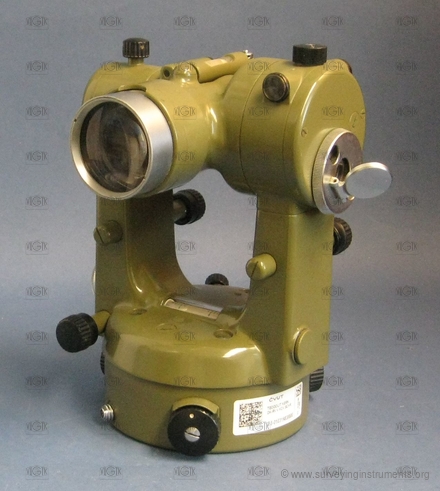

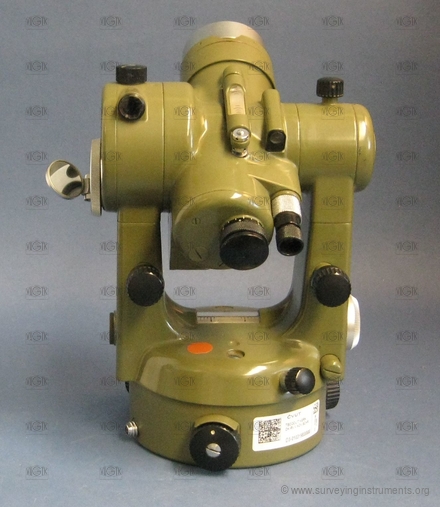

DK-RV

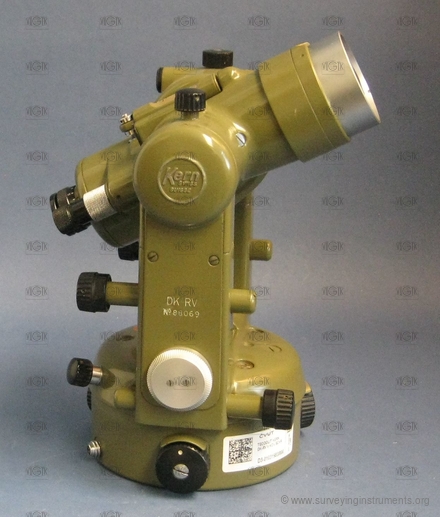

The manufacturer's name on the device
- VÚGTK: S0358
- Owner: České vysoké učení technické v Praze - Stavební fakulta
- Manufacturer: Kern
- Made: 01.01.1960
- Length: 180 mm
- Width: 171 mm
- Height: 213 mm
- Weight: 3890 g
- S/N: 88069
- cross hairs:
-
- telescope type: revolved
- tripod connection: special
- type of clamp: clamp on the axis
- compensator: no
- unite: gon
- distance meter type: optical
- construction of the distance meter: integrated
- autoreduction of the length: yes
- view in the telescope: inverted
- variable telescope length: no
- telescope length with extended eyepiece: 175 mm
- telescope diameter: 44 mm
- type of optical plummet: none
- compass: none
- horizontal circle diameter: 90 mm
- main reading scale of the horizontal circle: micrometer scale
- number of reading scales of the horizontal circle: 1
- the smallest segment of the horizontal circle: 2 mgon / 0,1 mgon
- setting the horizontal circle to zero: horizontal circle drive knob
- vertical circle: no
- segment of the vertical circle: yes
- segment's range of vertical circle: Stupnice 100.tg v rozsahu ±150
- vertical circle diameter: 60 mm
- main reading scale of the vertical circle: reading microscope
- number of reading scales of the vertical circle: 1
- the smallest segment of the vertical circle: 0,0002
- cross level: no
- length of the cross level/level perpendicular with line of collimation: 35 mm
- bubble length of the cross level/level perpendicular with line of collimation: 20 mm
- altitude buble: yes
- leveling vial: yes
- length of leveling vial: 29 mm
- bubble length of the leveling vial: 15 mm
- striding level: no
- sensitivity of the alidade level: 30 "
- sensitivity of the altitude level: 30 "
- designed for work: basic work
