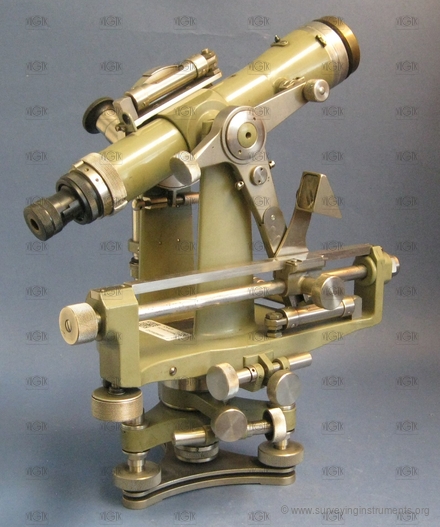

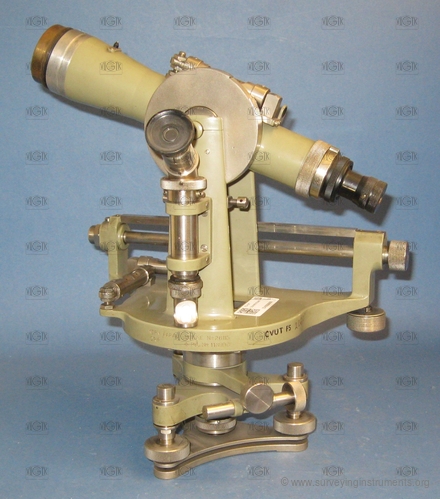

tachymetre – Kern

The manufacturer's name on the device

Interesting construction features

Information about the use of device

Information about the device condition

  • VÚGTK: S0361
  • Owner: České vysoké učení technické v Praze - Stavební fakulta
  • Manufacturer: Kern
  • Made: 01.01.1940
  • Length: 268 mm
  • Width: 210 mm
  • Height: 281 mm
  • Weight: 5513 g
  • S/N: 26115

  • cross hairs:
  • NK_002
  • telescope type: special
  • tripod connection: tribrach
  • type of clamp: clamp on the axis
  • compensator: no
  • unite: ° ' "
  • distance meter type: optical
  • construction of the distance meter: integrated
  • distance meter measuring range: 100 m
  • autoreduction of the length: yes
  • view in the telescope: inverted
  • variable telescope length: no
  • telescope length with extended eyepiece: 268 mm
  • telescope diameter: 40 mm
  • minimum telescope focusing distance: 3500 mm
  • type of optical plummet: none
  • compass: none
  • horizontal circle diameter: 110 mm
  • main reading scale of the horizontal circle: reading microscope
  • number of reading scales of the horizontal circle: 1
  • the smallest segment of the horizontal circle: 20´/ 1´
  • setting the horizontal circle to zero: repeating
  • vertical circle: no
  • segment of the vertical circle: no
  • segment's range of vertical circle: Nad horizont 0° – 42°, pod 319° – 360°
  • vertical circle diameter: 80 mm
  • main reading scale of the vertical circle: vernier
  • number of reading scales of the vertical circle: 1
  • the smallest segment of the vertical circle: 20´/ 1´
  • cross level: yes
  • length of the cross level/level parallel with line of collimation: 28 mm
  • bubble length of the cross level/level parallel with line of collimation: 20 mm
  • length of the cross level/level perpendicular with line of collimation: 28 mm
  • bubble length of the cross level/level perpendicular with line of collimation: 20 mm
  • altitude buble: no
  • leveling vial: yes
  • length of leveling vial: 28 mm
  • bubble length of the leveling vial: 20 mm
  • striding level: no
  • sensitivity of the striding level or leveling vial: 30 "
  • designed for work: basic work
