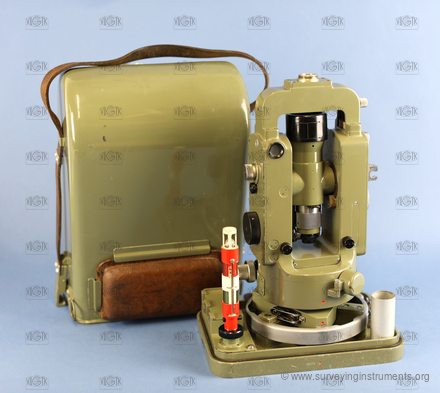

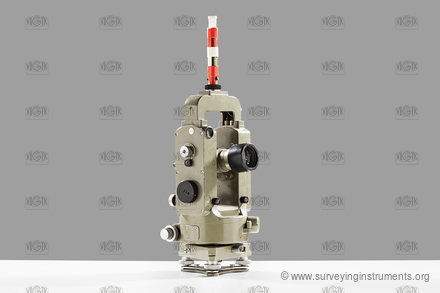

T1c
The manufacturer's name on the device
- MEOPTA PRAHA
- VÚGTK: S0047
- Owner: Národní technické muzeum
- Manufacturer: Meopta
- Made: 01.01.1960
- Length: 170 mm
- Width: 170 mm
- Height: 337 mm
- Weight: 5260 g
- S/N: 0072
- cross hairs:
-
- telescope type: flip over
- tripod connection: tribrach
- type of clamp: clamp on the axis
- compensator: no
- unite: gon
- the possibility of determining the elevation: yes
- distance meter type: optical
- construction of the distance meter: integrated
- view in the telescope: inverted
- variable telescope length: no
- telescope length with retracted eyepiece: 162 mm
- telescope diameter: 50 mm
- minimum telescope focusing distance: 3500 mm
- telescope magnification: 28
- type of optical plummet: none
- compass: integrated
- compass design: tubular compass
- main reading scale of the horizontal circle: optical micrometer
- number of reading scales of the horizontal circle: 1
- the smallest segment of the horizontal circle: 10 mgon
- setting the horizontal circle to zero: horizontal circle drive knob
- vertical circle: yes
- segment of the vertical circle: no
- main reading scale of the vertical circle: optical micrometer
- number of reading scales of the vertical circle: 1
- the smallest segment of the vertical circle: 10 mgon
- cross level: no
- length of the cross level/level perpendicular with line of collimation: 45 mm
- bubble length of the cross level/level perpendicular with line of collimation: 20 mm
- leveling vial: no
- striding level: no
- altitude buble: yes
- sensitivity of the alidade level: 40 "
- designed for work: basic work
