Zeměměřické a astronomické přístroje používané na území ČR od 16. do konce 20. století
triangulační teodolit
The manufacturer's name on the device
- SRB A ŠTYS PRAHA
- VÚGTK: S0054
- Owner: Národní technické muzeum
- Manufacturer: Srb a Štys
- Made: 01.01.1927
- Length: 302 mm
- Width: 305 mm
- Height: 300 mm
- Weight: 8450 g
- S/N: 258
- cross hairs:
-
- telescope type: reversible
- tripod connection: special
- type of clamp: clamp on the axis
- compensator: no
- unite: ° ' "
- the possibility of determining the elevation: no
- view in the telescope: inverted
- variable telescope length: yes
- telescope length with retracted eyepiece: 267 mm
- telescope length with extended eyepiece: 310 mm
- telescope diameter: 40 mm
- minimum telescope focusing distance: 2100 mm
- telescope magnification: 28
- type of optical plummet: none
- compass: none
- horizontal circle diameter: 180 mm

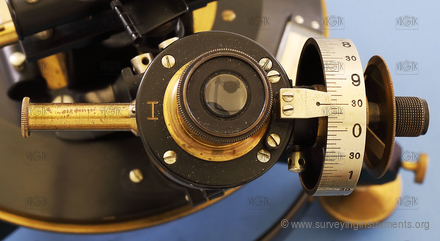

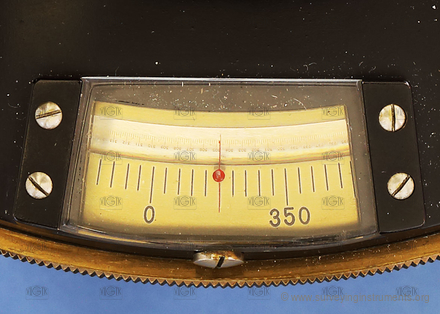

- main reading scale of the horizontal circle: optical micrometer
- number of reading scales of the horizontal circle: 2
- the smallest segment of the horizontal circle: 5"
- setting the horizontal circle to zero: none
- vertical circle: no
- cross level: yes
- length of the cross level/level parallel with line of collimation: 70 mm
- bubble length of the cross level/level parallel with line of collimation: 15 mm
- length of the cross level/level perpendicular with line of collimation: 70 mm
- bubble length of the cross level/level perpendicular with line of collimation: 15 mm
- leveling vial: no
- striding level: yes
- bubble length of the striding level: 108 mm
- bubble length of the striding level: 20 mm
- altitude buble: no
- sensitivity of the striding level or leveling vial: 5 "
- sensitivity of the alidade level: 20 "
- designed for work: precise work
