buzolní teodolit
Description
The manufacturer's name on the device
JOSEF & JAN FRIČ
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0055
Owner:
Národní technické muzeum
Manufacturer:
J. & J. Frič
Made:
01.01.1910
Length:
193
mm
Width:
226
mm
Height:
256
mm
Weight:
3930
g
S/N:
5498
Technical parameters
cross hairs:
telescope type:
flip over
tripod connection:
special
type of clamp:
peripheral clamp
compensator:
no
unite:
° ' "
the possibility of determining the elevation:
yes
distance meter type:
optical
construction of the distance meter:
integrated
view in the telescope:
inverted
variable telescope length:
yes
telescope length with retracted eyepiece:
227
mm
telescope length with extended eyepiece:
245
mm
telescope diameter:
33
mm
minimum telescope focusing distance:
3050
mm
telescope magnification:
20
type of optical plummet:
none
compass:
attachable
compass design:
circle
smallest division of the compass scale:
1°
horizontal circle diameter:
150
mm

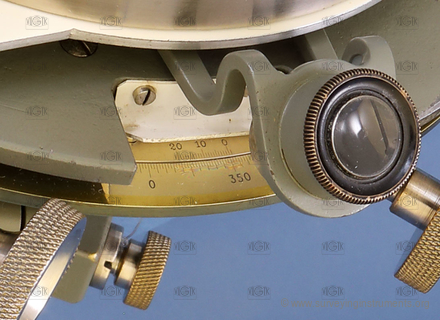

main reading scale of the horizontal circle:
vernier
number of reading scales of the horizontal circle:
1
the smallest segment of the horizontal circle:
1'
setting the horizontal circle to zero:
none
vertical circle:
no

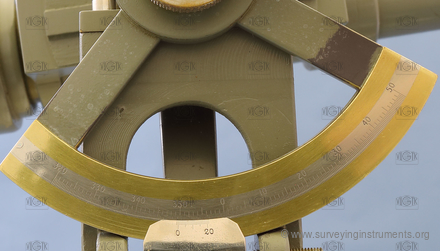

segment of the vertical circle:
yes
segment's range of vertical circle:
320° až 50˚
vertical circle diameter:
54
mm
main reading scale of the vertical circle:
vernier
number of reading scales of the vertical circle:
1
the smallest segment of the vertical circle:
1'
cross level:
no
leveling vial:
yes
length of leveling vial:
63
mm
bubble length of the leveling vial:
15
mm
striding level:
no
altitude buble:
no
designed for work:
basic work
