instruments
levelling instrument
Ni 050
manufacturers
Carl Zeiss Jena
Ni 050
×
×
×
×
Previous
Next

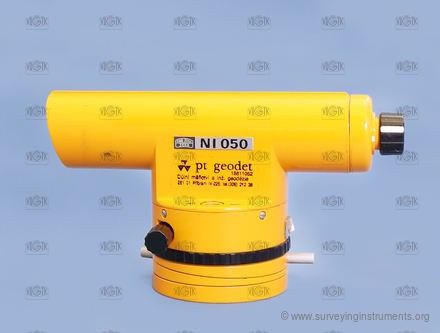

Ni 050
Description
The manufacturer's name on the device
Carl Zeiss Jena
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0073
Owner:
unpublished
Manufacturer:
Carl Zeiss Jena
Made:
01.01.1980
Length:
205
mm
Width:
110
mm
Height:
110
mm
Weight:
1010
g
S/N:
536387
Technical parameters
cross hairs:
telescope type:
non-removable
tripod connection:
tribrach
type of clamp:
endless
compensator:
yes
unite:
gon
elevation screw:
no
distance meter type:
optical
construction of the distance meter:
integrated
view in the telescope:
erected
variable telescope length:
no
telescope length with retracted eyepiece:
205
mm
telescope diameter:
25
mm
minimum telescope focusing distance:
900
mm
telescope magnification:
18

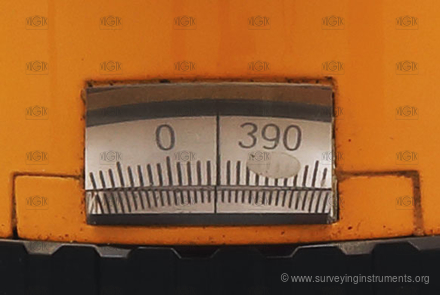

horizontal circle:
yes
main reading scale of the horizontal circle:
index
the smallest segment of the horizontal circle:
1 gon
segment of the vertical circle:
no
cross level:
no
leveling vial:
no
striding level:
no
designed for work:
low precise work
