Zeměměřické a astronomické přístroje používané na území ČR od 16. do konce 20. století

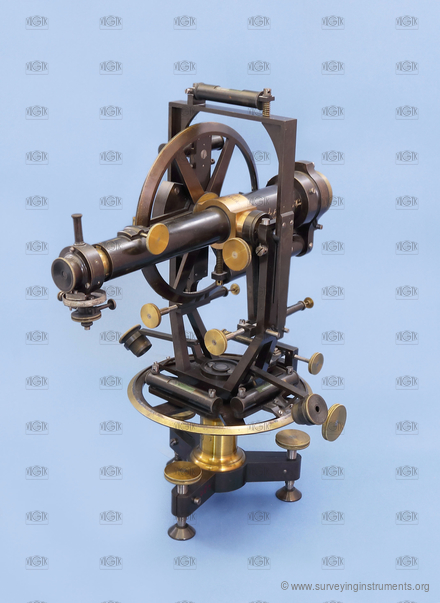

tachymetre – Starke & Kammerer
The manufacturer's name on the device
- Starke & Kammerer
- VÚGTK: S0078
- Owner: unpublished
- Manufacturer: Starke & Kammerer
- Made: 01.01.1878
- Length: 302 mm
- Width: 217 mm
- Height: 362 mm
- Weight: 5450 g
- S/N: 4095
- telescope type: flip over
- tripod connection: tribrach
- type of clamp: clamp on the axis
- compensator: no
- unite: ° ' "
- variable telescope length: yes
- telescope length with retracted eyepiece: 300 mm
- telescope length with extended eyepiece: 325 mm
- telescope diameter: 35 mm
- type of optical plummet: none
- compass: none
- horizontal circle diameter: 160 mm

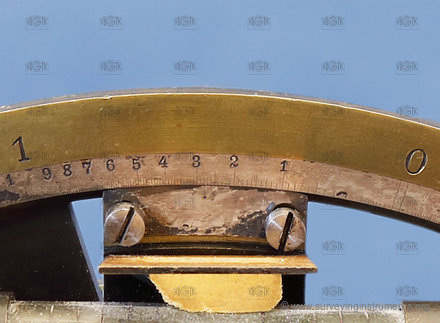

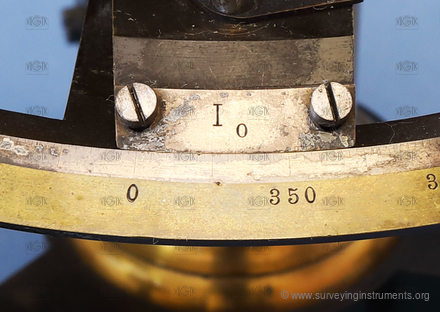

- main reading scale of the horizontal circle: vernier
- number of reading scales of the horizontal circle: 2
- the smallest segment of the horizontal circle: 20"
- setting the horizontal circle to zero: none
- vertical circle: yes
- segment of the vertical circle: no
- vertical circle diameter: 150 mm

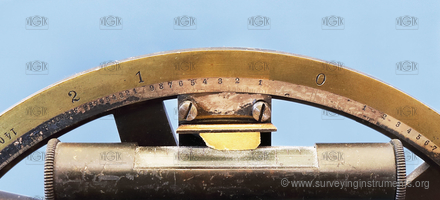

- main reading scale of the vertical circle: vernier
- number of reading scales of the vertical circle: 2
- the smallest segment of the vertical circle: 36''
- cross level: yes
- length of the cross level/level parallel with line of collimation: 75 mm
- bubble length of the cross level/level parallel with line of collimation: 16 mm
- length of the cross level/level perpendicular with line of collimation: 75 mm
- bubble length of the cross level/level perpendicular with line of collimation: 16 mm
- altitude buble: no
- leveling vial: yes
- length of leveling vial: 110 mm
- bubble length of the leveling vial: 52 mm
- striding level: yes
- bubble length of the striding level: 62 mm
- bubble length of the striding level: 16 mm
- sensitivity of the striding level or leveling vial: 20 "
- sensitivity of the alidade level: 80 "
- designed for work: precise work
