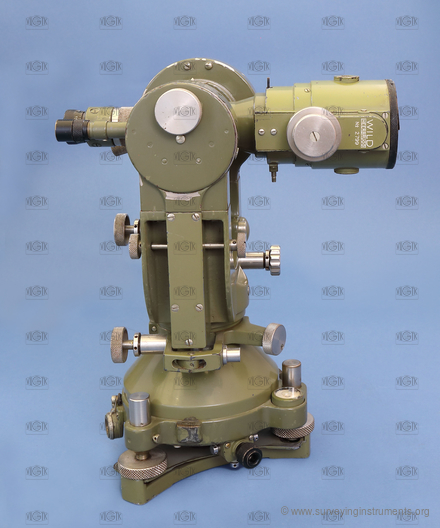

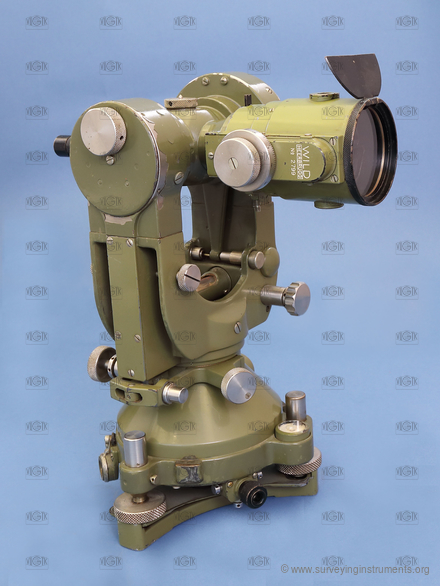

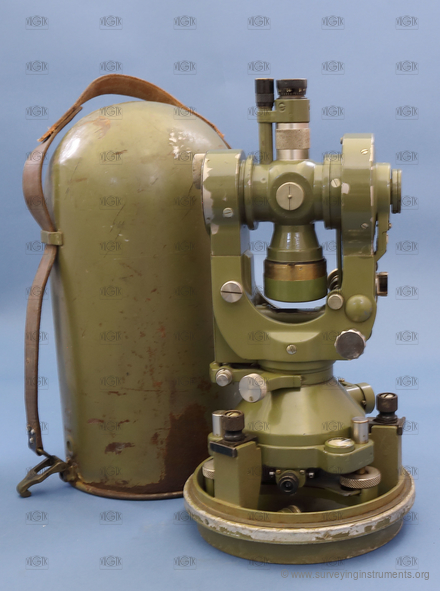

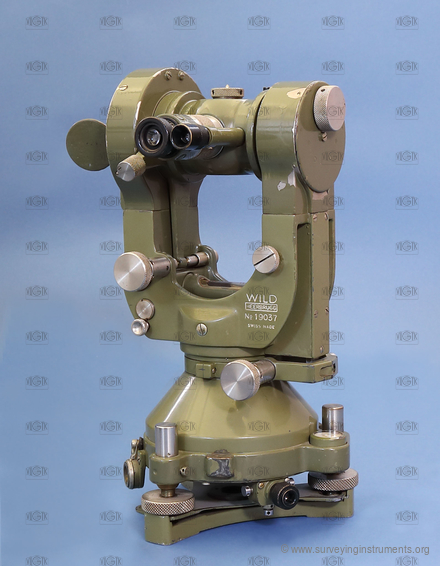

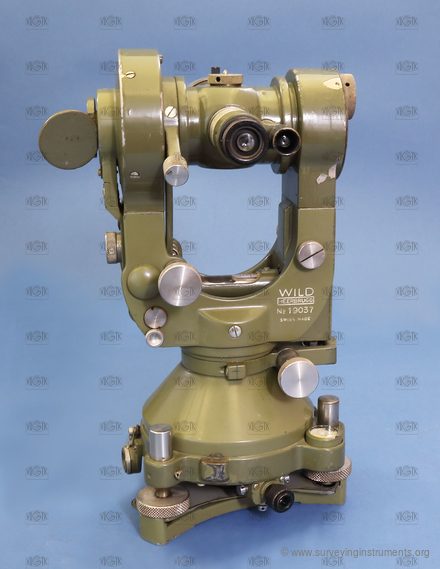

T2
Description
The manufacturer's name on the device
WILD HEERBRUGG
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0083
Owner:
unpublished
Manufacturer:
Wild Heerburgg
Made:
01.01.1950
Length:
144
mm
Width:
140
mm
Height:
263
mm
Weight:
5490
g
S/N:
19037
Technical parameters
cross hairs:
telescope type:
revolved
tripod connection:
tribrach
type of clamp:
clamp on the axis
compensator:
no
unite:
gon
the possibility of determining the elevation:
yes
distance meter type:
optical
construction of the distance meter:
integrated
view in the telescope:
inverted
variable telescope length:
no
telescope length with retracted eyepiece:
145
mm
telescope diameter:
40
mm
minimum telescope focusing distance:
1300
mm
telescope magnification:
28
type of optical plummet:
in the body of device
compass:
none
horizontal circle diameter:
106
mm
main reading scale of the horizontal circle:
micrometer scale
number of reading scales of the horizontal circle:
1
the smallest segment of the horizontal circle:
2"
setting the horizontal circle to zero:
horizontal circle drive knob
vertical circle:
yes
segment of the vertical circle:
no
vertical circle diameter:
80
mm
main reading scale of the vertical circle:
micrometer scale
number of reading scales of the vertical circle:
1
the smallest segment of the vertical circle:
2"
cross level:
no
length of the cross level/level perpendicular with line of collimation:
56
mm
bubble length of the cross level/level perpendicular with line of collimation:
23
mm
leveling vial:
no
striding level:
no
altitude buble:
yes
lenght of the altitude level:
44
mm
sensitivity of the alidade level:
15
"
designed for work:
precise work
