Zeměměřické a astronomické přístroje používané na území ČR od 16. do konce 20. století

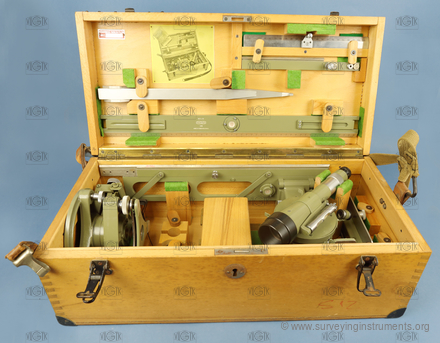

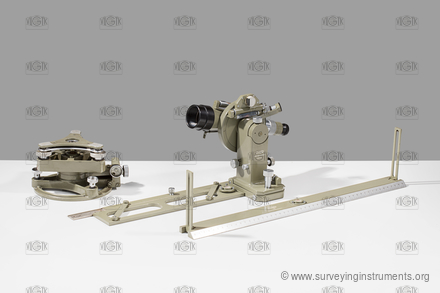

topo souprava

The manufacturer's name on the device
  • Meopta

Interesting construction features

Information about the use of device

Information about the device condition

  • VÚGTK: S0088
  • Owner: Národní technické muzeum
  • Manufacturer: Meopta
  • Made: 01.01.1960
  • Length: 505 mm
  • Width: 155 mm
  • Height: 190 mm
  • Weight: 3790 g
  • S/N: 808533

  • cross hairs:
  • NK_021
  • telescope type: flip over
  • tripod connection: special
  • type of clamp: other
  • compensator: no
  • unite: gon
  • the possibility of determining the elevation: yes
  • construction of the distance meter: integrated
  • distance meter type: optical
  • altitude buble: yes
  • view in the telescope: inverted
  • variable telescope length: no
  • telescope length with retracted eyepiece: 238 mm
  • telescope diameter: 35 mm
  • minimum telescope focusing distance: 3450 mm
  • telescope magnification: 25
  • type of optical plummet: none
  • compass: none
  • horizontal circle: no
  • setting the horizontal circle to zero: none
  • vertical circle: yes
  • segment of the vertical circle: no
  • vertical circle diameter: 100 mm
  • main reading scale of the vertical circle: vernier
  • number of reading scales of the vertical circle: 1
  • the smallest segment of the vertical circle: 1'
  • cross level: no
  • length of the cross level/level perpendicular with line of collimation: 48 mm
  • bubble length of the cross level/level perpendicular with line of collimation: 18 mm
  • length of leveling vial: 70 mm
  • bubble length of the leveling vial: 26 mm
  • striding level: no
  • sensitivity of the striding level or leveling vial: 20 "
  • designed for work: special work
