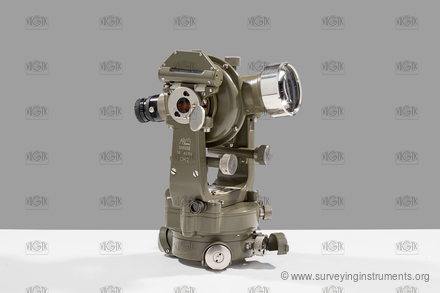

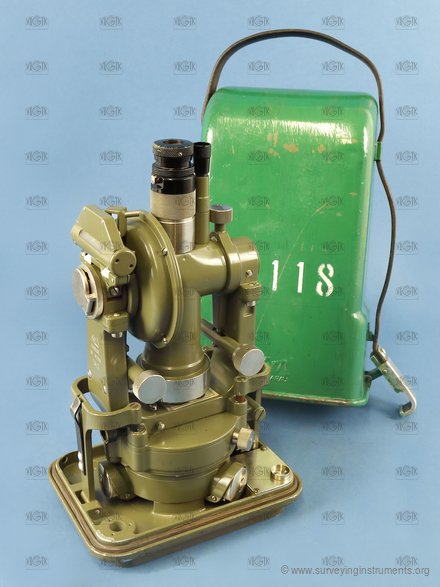

DK 2

The manufacturer's name on the device
  • Kern AARAU SUISSE

Interesting construction features

Information about the use of devices

Information about the use of devices

  • VÚGTK: S0089
  • Owner: Národní technické muzeum
  • Manufacturer: Kern
  • Made: 01.01.1954
  • Length: 170 mm
  • Width: 132 mm
  • Height: 210 mm
  • Weight: 3630 g
  • S/N: 42118

  • cross hairs:
  • NK_003
  • telescope type: revolved
  • tripod connection: tribrach
  • type of clamp: clamp on the axis
  • compensator: no
  • unite: gon
  • the possibility of determining the elevation: yes
  • distance meter type: optical
  • construction of the distance meter: integrated
  • view in the telescope: inverted
  • variable telescope length: no
  • telescope length with retracted eyepiece: 170 mm
  • telescope diameter: 43 mm
  • minimum telescope focusing distance: 1600 mm
  • telescope magnification: 30
  • type of optical plummet: in the body of device
  • compass: none
  • horizontal circle diameter: 90 mm
  • main reading scale of the horizontal circle: reading microscope
  • number of reading scales of the horizontal circle: 1
  • the smallest segment of the horizontal circle: 10´
  • setting the horizontal circle to zero: horizontal circle drive knob
  • vertical circle: yes
  • segment of the vertical circle: no
  • vertical circle diameter: 75 mm
  • main reading scale of the vertical circle: reading microscope
  • number of reading scales of the vertical circle: 1
  • the smallest segment of the vertical circle: 10´
  • cross level: no
  • length of the cross level/level perpendicular with line of collimation: 60 mm
  • bubble length of the cross level/level perpendicular with line of collimation: 18 mm
  • leveling vial: no
  • striding level: no
  • altitude buble: yes
  • lenght of the altitude level: 60 mm
  • sensitivity of the alidade level: 20 "
  • designed for work: precise work
