Th D

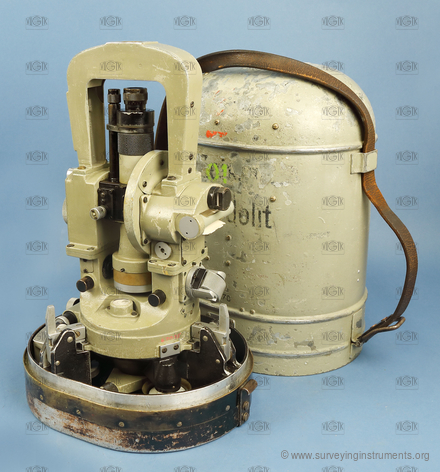

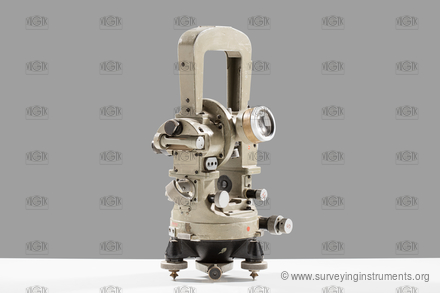

Description
The manufacturer's name on the device
Carl Zeiss Jena
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0091
Owner:
Národní technické muzeum
Manufacturer:
Carl Zeiss Jena
Made:
01.01.1935
Length:
190
mm
Width:
180
mm
Height:
335
mm
Weight:
5390
g
S/N:
41870
Technical parameters
cross hairs:
telescope type:
flip over
tripod connection:
tribrach
type of clamp:
clamp on the axis
compensator:
no
unite:
gon
the possibility of determining the elevation:
yes
distance meter type:
optical
construction of the distance meter:
integrated
view in the telescope:
inverted
variable telescope length:
no
telescope length with retracted eyepiece:
185
mm
telescope diameter:
35
mm
minimum telescope focusing distance:
2000
mm
telescope magnification:
30
type of optical plummet:
in tribrach
compass:
none
horizontal circle diameter:
115
mm
main reading scale of the horizontal circle:
micrometer scale
number of reading scales of the horizontal circle:
1
the smallest segment of the horizontal circle:
10"
setting the horizontal circle to zero:
horizontal circle drive knob
vertical circle:
yes
segment of the vertical circle:
no
vertical circle diameter:
90
mm
main reading scale of the vertical circle:
index
number of reading scales of the vertical circle:
1
the smallest segment of the vertical circle:
2'
cross level:
no
length of the cross level/level perpendicular with line of collimation:
55
mm
bubble length of the cross level/level perpendicular with line of collimation:
15
mm
leveling vial:
no
striding level:
no
altitude buble:
yes
lenght of the altitude level:
70
mm
bubble length of the altitude level:
23
mm
sensitivity of the alidade level:
15
"
designed for work:
precise work
