Zeměměřické a astronomické přístroje používané na území ČR od 16. do konce 20. století

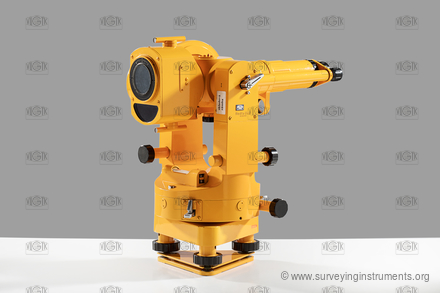

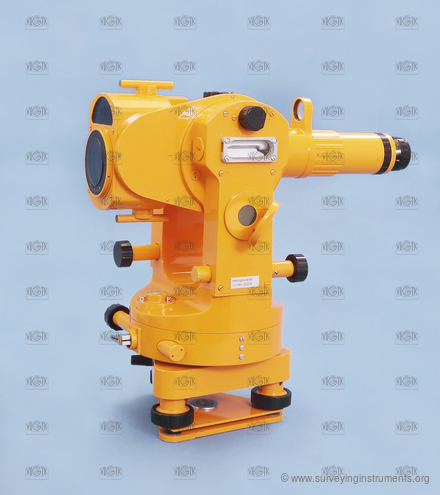

Redta 002
The manufacturer's name on the device
- Carl Zeiss Jena
- VÚGTK: S0094
- Owner: Národní technické muzeum
- Manufacturer: Carl Zeiss Jena
- Made: 01.01.1980
- Length: 310 mm
- Width: 160 mm
- Height: 295 mm
- Weight: 6320 g
- S/N: 450292
- cross hairs:
-
- telescope type: flip over
- tripod connection: tribrach
- type of clamp: clamp on the axis
- compensator: no
- unite: gon
- distance meter type: optomechanical
- construction of the distance meter: integrated
- autoreduction of the length: yes
- view in the telescope: erected
- variable telescope length: no
- telescope length with retracted eyepiece: 300 mm
- telescope diameter: 35 mm
- minimum telescope focusing distance: 2450 mm
- telescope magnification: 20
- type of optical plummet: none
- compass: none
- horizontal circle diameter: 135 mm
- main reading scale of the horizontal circle: index
- number of reading scales of the horizontal circle: 1
- the smallest segment of the horizontal circle: 1'
- setting the horizontal circle to zero: circle clamp
- vertical circle: yes
- segment of the vertical circle: no
- vertical circle diameter: 90 mm
- main reading scale of the vertical circle: index
- number of reading scales of the vertical circle: 1
- the smallest segment of the vertical circle: 1'
- cross level: no
- length of the cross level/level perpendicular with line of collimation: 70 mm
- bubble length of the cross level/level perpendicular with line of collimation: 20 mm
- altitude buble: yes
- lenght of the altitude level: 70 mm
- leveling vial: no
- striding level: no
- sensitivity of the alidade level: 30 "
- designed for work: basic work
