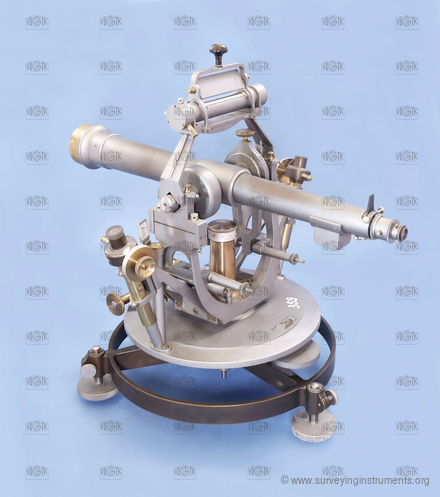

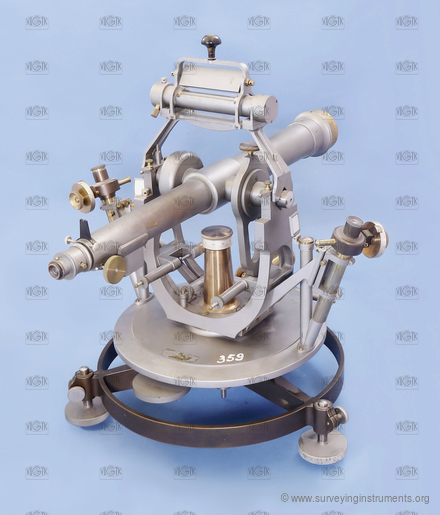

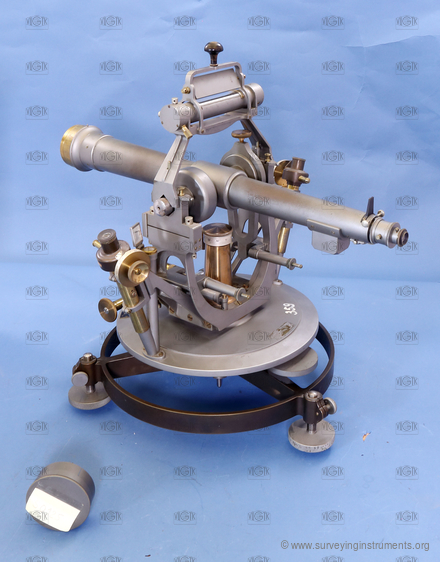

theodolite – Breithaupt
The manufacturer's name on the device
- F.W. Breithaupt & Sohne Cassel.
- VÚGTK: S0125
- Owner: Vysoké učení technické v Brně
- Manufacturer: Breithaupt
- Made: 01.01.1901
- Length: 510 mm
- Width: 410 mm
- Height: 455 mm
- Weight: 19080 g
- S/N: 34443
- cross hairs:
-
- telescope type: reversible
- tripod connection: tribrach
- type of clamp: clamp on the axis
- compensator: no
- unite: ° ' "
- the possibility of determining the elevation: yes
- distance meter type: mechanical
- construction of the distance meter: integrated
- view in the telescope: inverted
- variable telescope length: yes
- telescope length with retracted eyepiece: 510 mm
- telescope length with extended eyepiece: 550 mm
- telescope diameter: 50 mm
- minimum telescope focusing distance: 6000 mm
- telescope magnification: 40
- type of optical plummet: none
- compass: none
- horizontal circle diameter: 260 mm

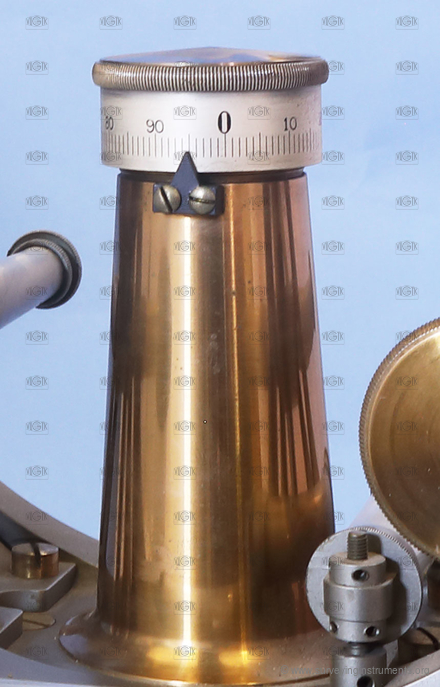

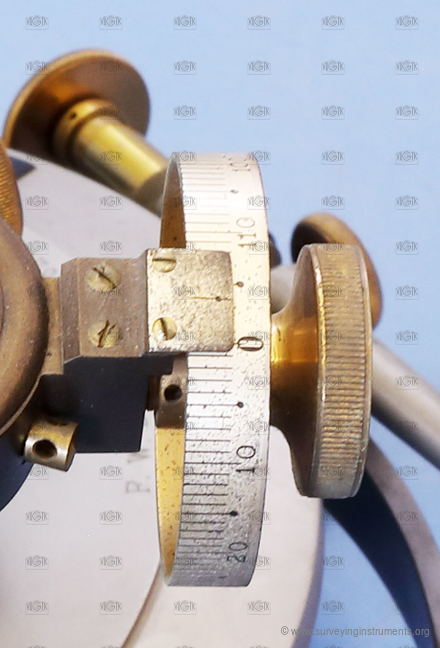

- main reading scale of the horizontal circle: reading microscope
- number of reading scales of the horizontal circle: 2
- setting the horizontal circle to zero: none
- vertical circle: no
- segment of the vertical circle: no
- cross level: yes
- length of the cross level/level parallel with line of collimation: 60 mm
- bubble length of the cross level/level parallel with line of collimation: 15 mm
- length of the cross level/level perpendicular with line of collimation: 90 mm
- bubble length of the cross level/level perpendicular with line of collimation: 25 mm
- leveling vial: no
- striding level: yes
- bubble length of the striding level: 155 mm
- bubble length of the striding level: 35 mm
- altitude buble: no
- sensitivity of the striding level or leveling vial: 10 "
- designed for work: basic work
