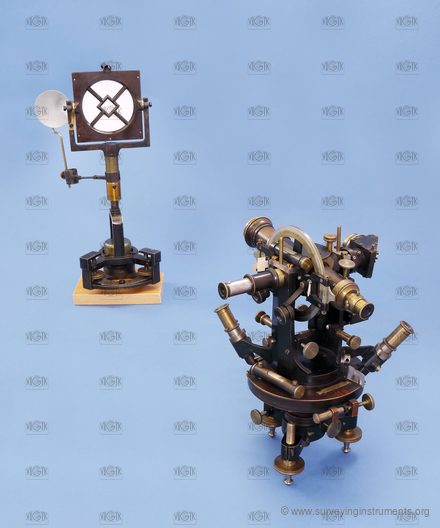

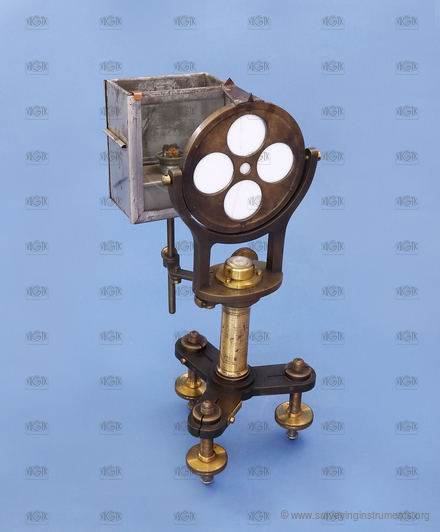

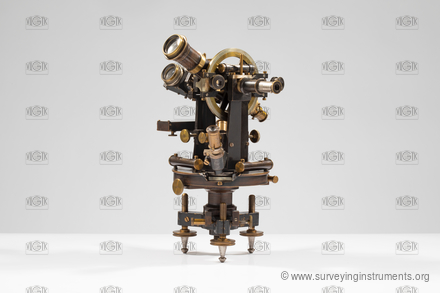

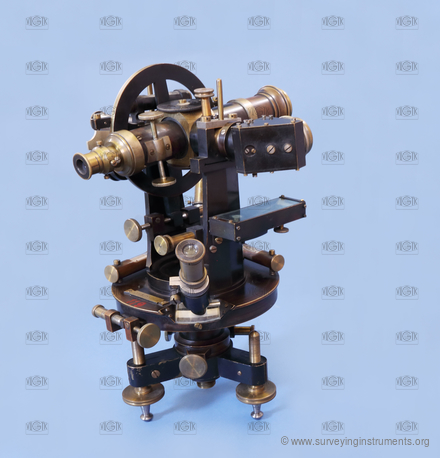

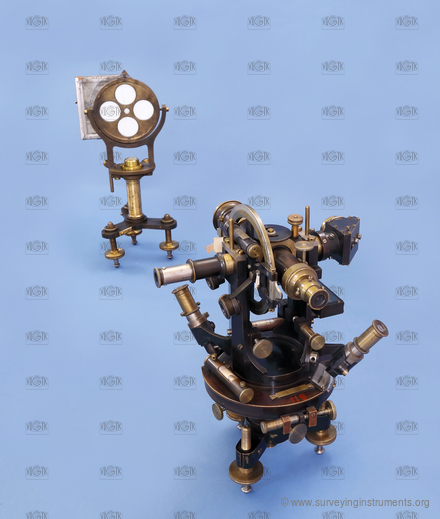

Duplex

The manufacturer's name on the device

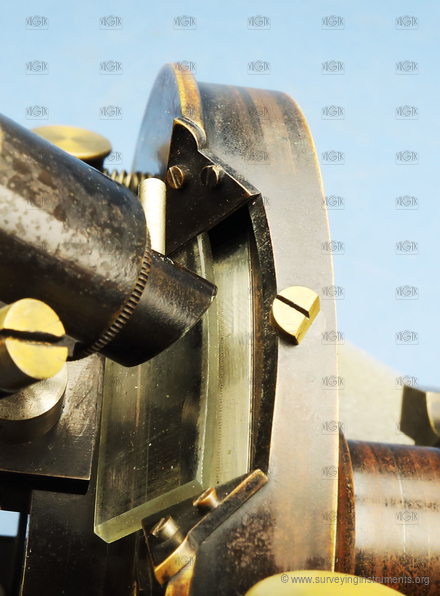

Interesting construction features

Information about the use of device

Information about the device condition

  • VÚGTK: S0131
  • Owner: Hornicko-geologická fakulta, VŠB-TUO
  • Manufacturer: J. & J. Frič
  • Made: 01.01.1886
  • Length: 200 mm
  • Width: 200 mm
  • Height: 277 mm
  • Weight: 4650 g
  • S/N: 119

  • cross hairs:
  • NK_004
  • telescope type: revolved
  • tripod connection: tribrach
  • type of clamp: clamp on the axis
  • compensator: no
  • unite: ° ' "
  • the possibility of determining the elevation: yes
  • distance meter type: optical
  • construction of the distance meter: integrated
  • view in the telescope: inverted
  • variable telescope length: yes
  • telescope length with retracted eyepiece: 190 mm
  • telescope length with extended eyepiece: 205 mm
  • telescope diameter: 25 mm
  • minimum telescope focusing distance: 3000 mm
  • telescope magnification: 25
  • type of optical plummet: none
  • compass: integrated

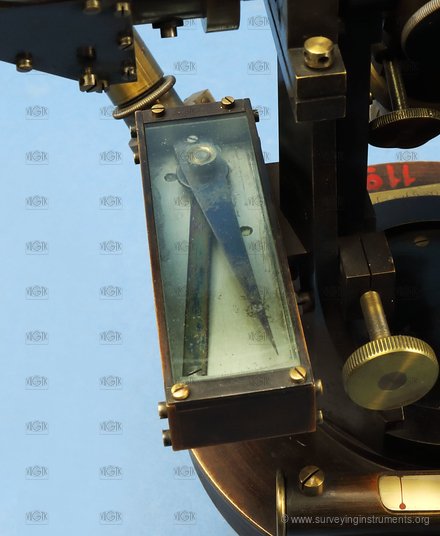

  • compass design: tubular compass
  • smallest division of the compass scale: 30'

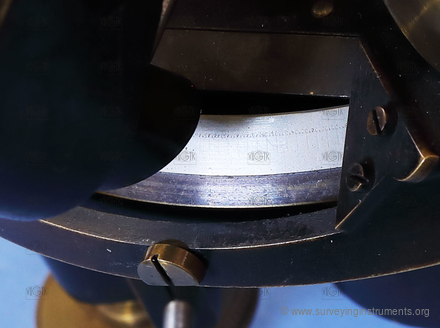

  • horizontal circle diameter: 130 mm

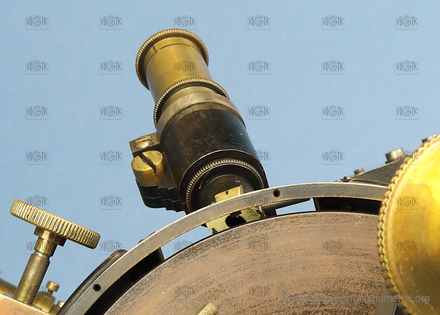

  • main reading scale of the horizontal circle: microscope scale
  • number of reading scales of the horizontal circle: 2
  • the smallest segment of the horizontal circle: 1'
  • setting the horizontal circle to zero: repeating
  • vertical circle: yes
  • segment of the vertical circle: no
  • vertical circle diameter: 95 mm

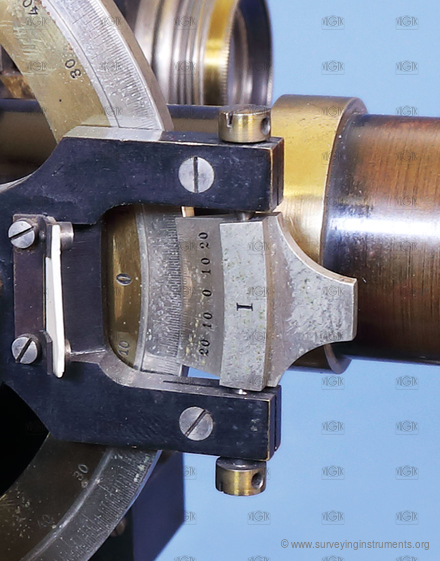

  • main reading scale of the vertical circle: vernier
  • number of reading scales of the vertical circle: 2
  • the smallest segment of the vertical circle: 1'
  • cross level: yes
  • length of the cross level/level parallel with line of collimation: 65 mm
  • bubble length of the cross level/level parallel with line of collimation: 13 mm
  • length of the cross level/level perpendicular with line of collimation: 65 mm
  • bubble length of the cross level/level perpendicular with line of collimation: 12 mm
  • leveling vial: no
  • striding level: no
  • altitude buble: yes
  • lenght of the altitude level: 55 mm
  • bubble length of the altitude level: 15 mm
  • designed for work: special work
