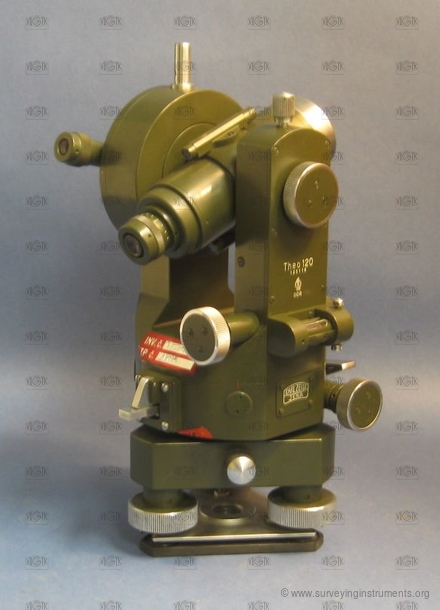

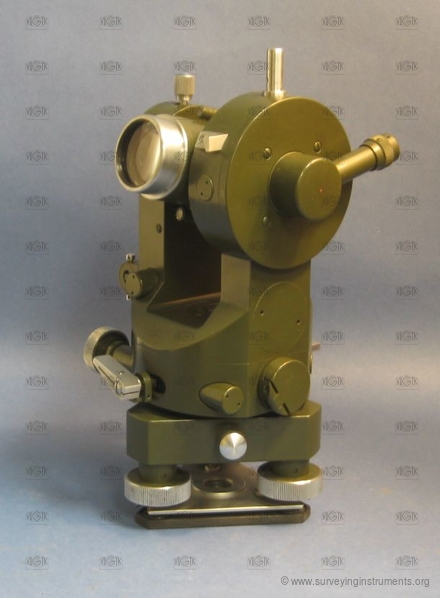

Theo 120

The manufacturer's name on the device

Interesting construction features

Information about the use of device

Information about the device condition

  • VÚGTK: S0281
  • Owner: České vysoké učení technické v Praze - Stavební fakulta
  • Manufacturer: Carl Zeiss Jena
  • Made: 01.01.1950
  • Length: 133 mm
  • Width: 138 mm
  • Height: 247 mm
  • Weight: 2401 g
  • S/N: 125116

  • cross hairs:
  • NK_003
  • telescope type: revolved
  • tripod connection: tribrach
  • type of clamp: clamp on the axis
  • compensator: no
  • unite: gon
  • the possibility of determining the elevation: yes
  • distance meter type: optical
  • construction of the distance meter: integrated
  • view in the telescope: erected
  • variable telescope length: no
  • telescope length with extended eyepiece: 121 mm
  • telescope diameter: 33 mm
  • minimum telescope focusing distance: 1800 mm
  • type of optical plummet: none
  • compass: none
  • horizontal circle diameter: 75 mm
  • main reading scale of the horizontal circle: reading microscope
  • number of reading scales of the horizontal circle: 1
  • the smallest segment of the horizontal circle: 0,1
  • setting the horizontal circle to zero: repeating
  • vertical circle: yes
  • vertical circle diameter: 75 mm
  • main reading scale of the vertical circle: reading microscope
  • number of reading scales of the vertical circle: 1
  • the smallest segment of the vertical circle: 0,1
  • cross level: no
  • length of the cross level/level parallel with line of collimation: 19 mm
  • bubble length of the cross level/level parallel with line of collimation: 8 mm
  • leveling vial: no
  • striding level: no
  • altitude buble: no
  • designed for work: special work
