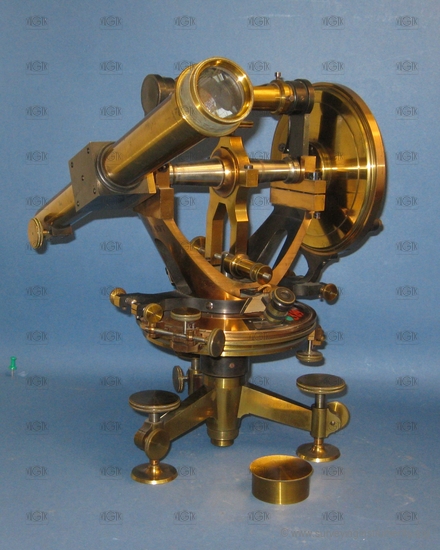

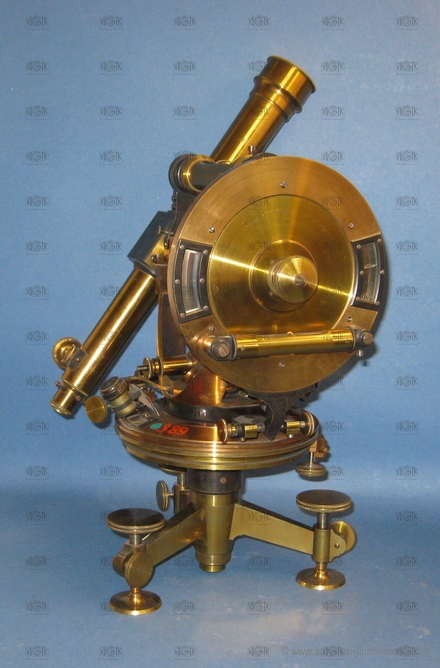

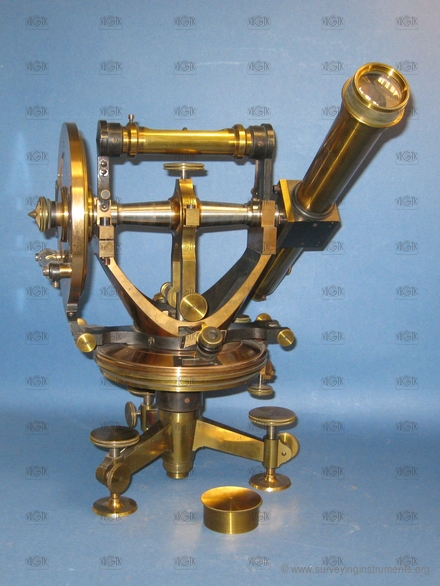

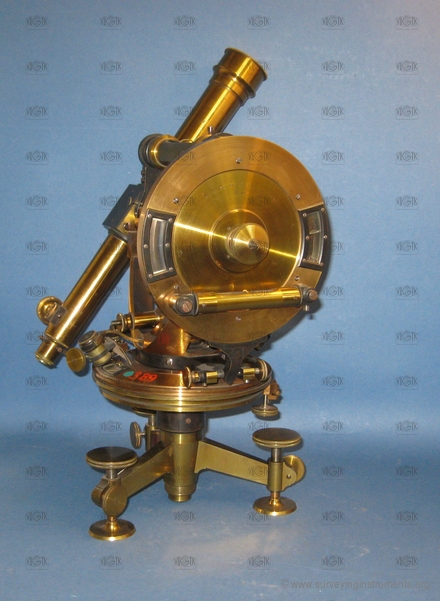

theodolite – Breithaupt
Description
The manufacturer's name on the device
Interesting construction features
Information about the use of device
Information about the device condition
Basic data
VÚGTK:
S0294
Owner:
České vysoké učení technické v Praze - Stavební fakulta
Manufacturer:
Breithaupt
Made:
01.01.1870
Length:
383
mm
Width:
273
mm
Height:
326
mm
Weight:
8516
g
S/N:
908
Technical parameters
cross hairs:
telescope type:
special
tripod connection:
tribrach
type of clamp:
peripheral clamp
compensator:
no
unite:
° ' "
the possibility of determining the elevation:
no
view in the telescope:
inverted
variable telescope length:
yes
telescope length with retracted eyepiece:
352
mm
telescope length with extended eyepiece:
383
mm
telescope diameter:
34
mm
minimum telescope focusing distance:
2000
mm
type of optical plummet:
none
compass:
none
horizontal circle diameter:
153
mm
main reading scale of the horizontal circle:
vernier
number of reading scales of the horizontal circle:
2
the smallest segment of the horizontal circle:
20´
setting the horizontal circle to zero:
repeating
vertical circle:
yes
vertical circle diameter:
153
mm
main reading scale of the vertical circle:
vernier
number of reading scales of the vertical circle:
2
the smallest segment of the vertical circle:
20´
cross level:
no
leveling vial:
no
striding level:
yes
bubble length of the striding level:
80
mm
bubble length of the striding level:
32
mm
altitude buble:
yes
lenght of the altitude level:
60
mm
bubble length of the altitude level:
30
mm
designed for work:
basic work
