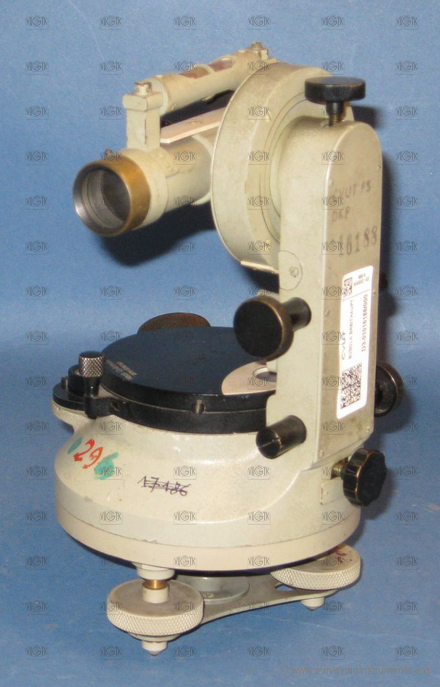

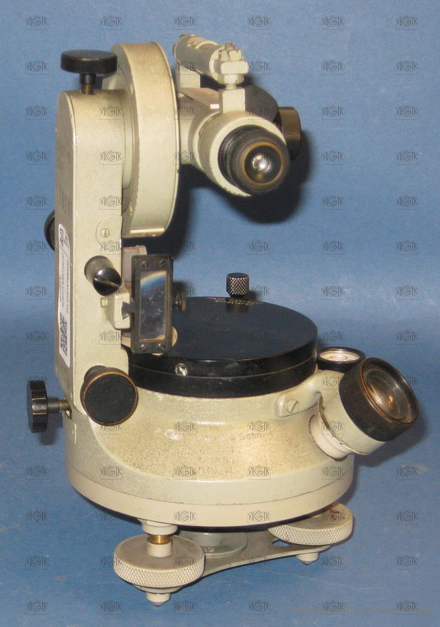

theodolite – Breithaupt

The manufacturer's name on the device

Interesting construction features

Information about the use of device

Information about the device condition

  • VÚGTK: S0280
  • Owner: České vysoké učení technické v Praze - Stavební fakulta
  • Manufacturer: Breithaupt
  • Made: 01.01.1925
  • Length: 127 mm
  • Width: 142 mm
  • Height: 210 mm
  • Weight: 1736 g
  • S/N: 69251

  • cross hairs:
  • NK_049
  • telescope type: revolved
  • tripod connection: tribrach
  • type of clamp: clamp on the axis
  • compensator: no
  • unite: ° ' "
  • the possibility of determining the elevation: yes
  • distance meter type: optical
  • construction of the distance meter: integrated
  • view in the telescope: inverted
  • variable telescope length: yes
  • telescope length with extended eyepiece: 128 mm
  • telescope diameter: 20 mm
  • type of optical plummet: none
  • compass: integrated
  • compass design: circle
  • compass diameter: 70 mm
  • smallest division of the compass scale: 1°
  • horizontal circle diameter: 85 mm
  • main reading scale of the horizontal circle: index
  • number of reading scales of the horizontal circle: 1
  • the smallest segment of the horizontal circle: 20´/5´
  • setting the horizontal circle to zero: none
  • vertical circle: yes
  • vertical circle diameter: 70 mm
  • main reading scale of the vertical circle: index
  • number of reading scales of the vertical circle: 1
  • the smallest segment of the vertical circle: 1° / 15'
  • leveling vial: yes
  • striding level: no
  • altitude buble: no
  • sensitivity of the alidade level: 5´ "
  • designed for work: basic work
